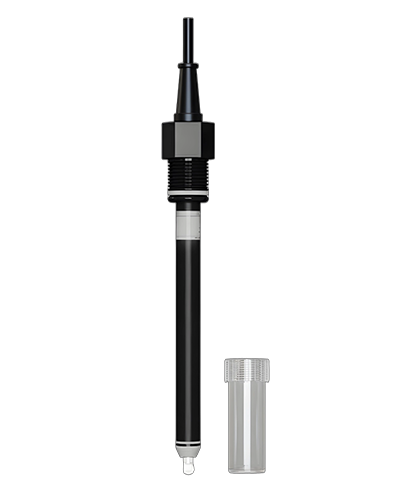

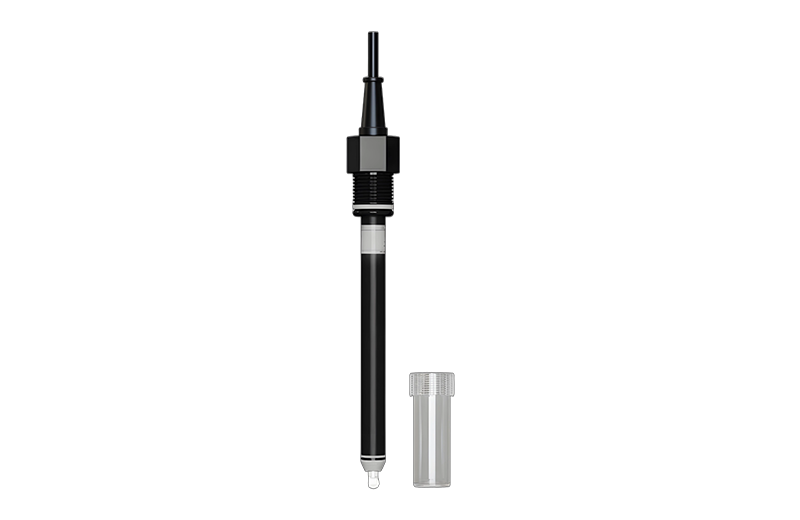

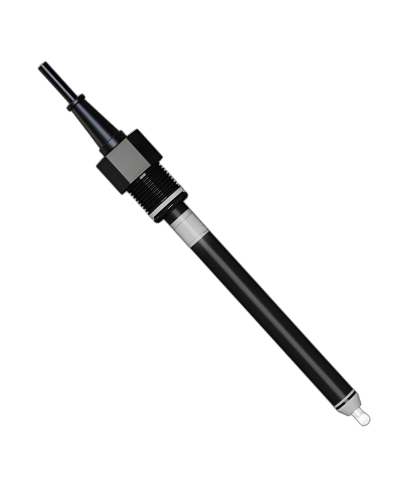

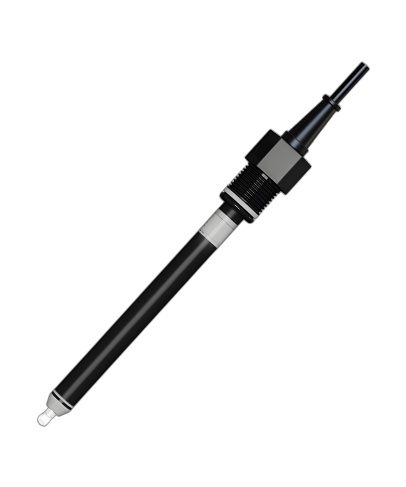

This product is a new type of online ORP water quality sensor independently developed by ERUN Group.It features high stability and high precision, and can automatically detect temperature and perform automatic temperature compensation, accurately measuring the ORP value and temperature value of the solution.It is widely used for online monitoring of ORP values in solutions in fields such as:water treatment, tap water supply, wastewater treatment, aquaculture, surface water monitoring, and environmental engineering.
Measuring Range | -2000mV~+2000mV |
Accuracy | 1mV |
Resolution | 2mV |
Slope | ≥96% |
Temperature Measuring Range | 0.0-60℃ |
Temperature Se nsor | Pt1000 (optional: Pt100, NTC10K, NTC2.252K) |
Liquid Junction | PTFE |
Pressure Range | 0-3bar |
Housing Material | glass |
Membrane Resistance | ＜500Ω |
Process Connection | PG13.5 |
Signal Cable Length | Standard 5-meter signal cable |
Electrical Connection | Pin type or BNC interface |
Installation Method | immersion type |
IP Rating | IP68 |
