Brand: Erun

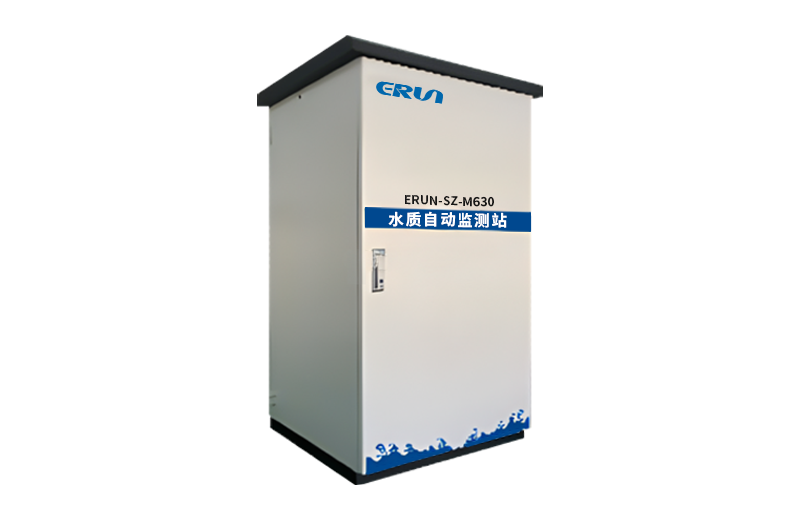

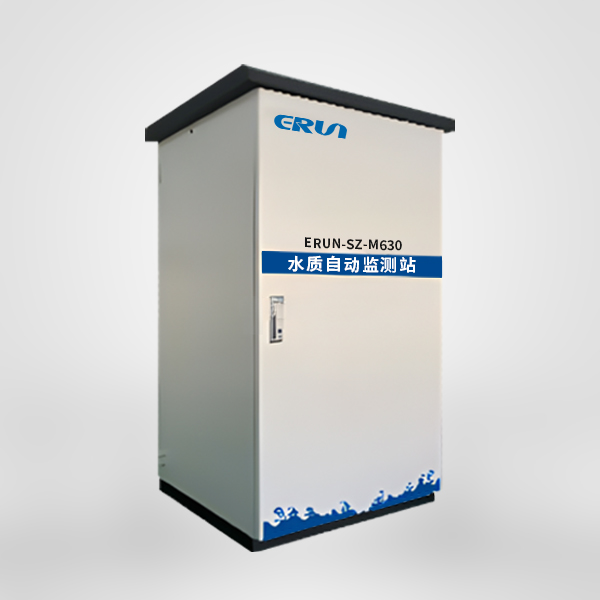

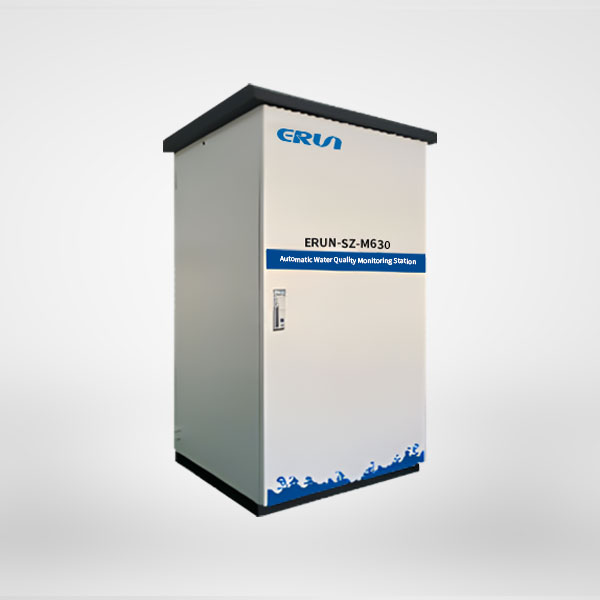

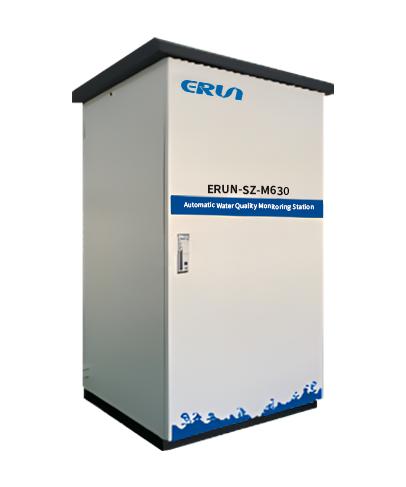

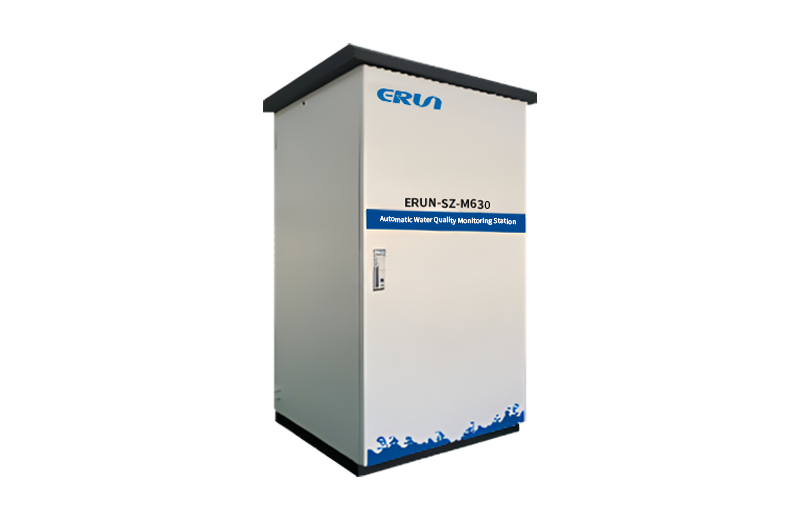

Multi-parameter water quality online monitoring system
Model: ERUN-SZ-M630
ERUN-SZ-M630 multi-parameter water quality online monitoring system developed and produced by Erun Environmental Protection can detect the concentration of pollutants such as COD, ammonia nitrogen, total phosphorus, total nitrogen, permanganate index and other pollutants in the body of water, and can be integrated with probe-type sensors such as pH, DO, conductivity, turbidity, SS, etc., which has the characteristics of high-integration and low-cost. Friendly human-computer interaction, 7-inch color touch screen, applications based on Linux open source system. Support USB, TF card, program upgrade, data reading convenient, data storage can be expanded.
ERUN-SZ-M630Multi-parameter water quality online monitoring system product parameters：
Measurement range | COD：(0～200/500/1000) mg/L ammonia nitrogen：(0～10/20/50) mg/L， total phosphorus：(0～2/5/10) mg/L， Total nitrogen: (0-20/50/100) mg/L, Permanganate index: (0-10/20/50) mg/L, The above parameter range can be customized according to customer requirements |
oscillometric error | ±5% |
repetitive | ≤3% |
zero-point drift | ≤3% |
range drift | ≤3% |
Power Requirements | （220±22）VAC,（50±1）Hz |
environmental temperature | （0~50）℃ |
Instrument Size | 67cm×146cm×68cm(W×H×D)， Module size 21cm×42cm×21cm(W×H×D) |
Instrument weight | ＜200kg |
ERUN-SZ-M630Multi-parameter water quality online monitoring system product features：
1. Turbidity automatic compensation: based on the water body turbidity automatic compensation, reduce the interference of the measurement. |
2. Key parameter upload: Based on the protocol requirements, key parameters are automatically uploaded to assist judgment. |
3. Friendly human-machine interaction: 7-inch color touch screen, application based on Linux open source system. |
4. Support IPv4 network: Compatible with IPv6 network, meet the TCP/IP protocol communication needs. |
5. Support USB, TF card: program upgrade, data reading is convenient, data storage can be expanded. |
