Brand: Erun

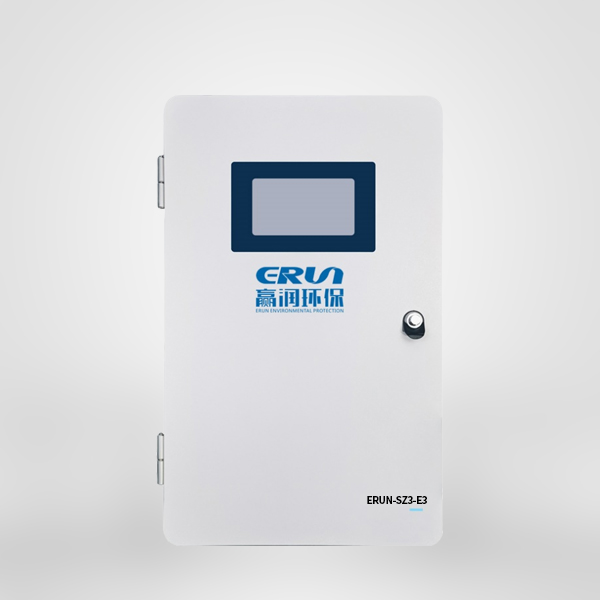

On-line water quality phosphate analyzer
Model: ERUN-SZ3-E3
Parameter: phosphate
ERUN-SZ3-E3 on-line water phosphate analyzer produced by Erun Environmental Protection is suitable for measuring the medium of demineralized water, boiler water, steam and condensate, and has been widely used in the industries of thermal power generation, chemical industry, semiconductor, metallurgy and paper making.
Measurement range | 0-20mg/L (ppm) |
Measurement Error | 1% F.S. |
resolution | 0.01mg/L (ppm) |
Reagent type | 1 reagent + demineralized water |
Measurement period | 6 minutes |
Reagent consumption | 2 liters/30 days |
Output signal | Isolated 4-20mA per channel |
Water flow rate | 80-120mL/min |
Power supply | 24V DC power supply / 220V AC power supply |
| Temperature of water sample | 5-50℃ |
| External size | 680×450×190mm (L×W×D) |
| Opening size | 645×400mm |
1.1-6 channels can be selected to reduce the cost.
2.can significantly save the cost of pharmaceuticals (1/2 of the traditional phosphate monitor dosage).
3.Precision plunger pump dosing is accurate, eliminating human error, high measurement accuracy and good repeatability.
4.photoelectric detection using dual optical circuit structure, to overcome the impact of light source drift, long-term stability, high accuracy.
5.Calibration requires only one standard liquid, and automatically calculates the background phosphorus content in the standard liquid, eliminating the effect of background phosphorus.
6.unique liquid circuit design so that the agent and precision plunger pump without contact, increase service life, reduce maintenance.
7.increase the automatic cleaning technology, significantly reduce the reagent crystallization caused by the liquid path blockage failure, improve stability.
8.7-inch color LCD touch screen, beautiful display, friendly human-machine interface, easy to operate.
9.with large-capacity historical data storage function, data query is convenient.
10.Compact structure, can be open-hole installation, can also be wall-mounted, easy to use and maintain.
