Brand: Erun

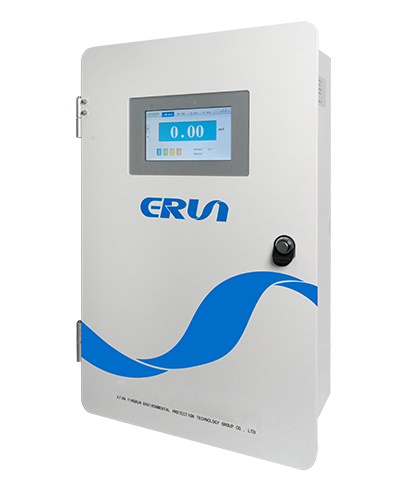

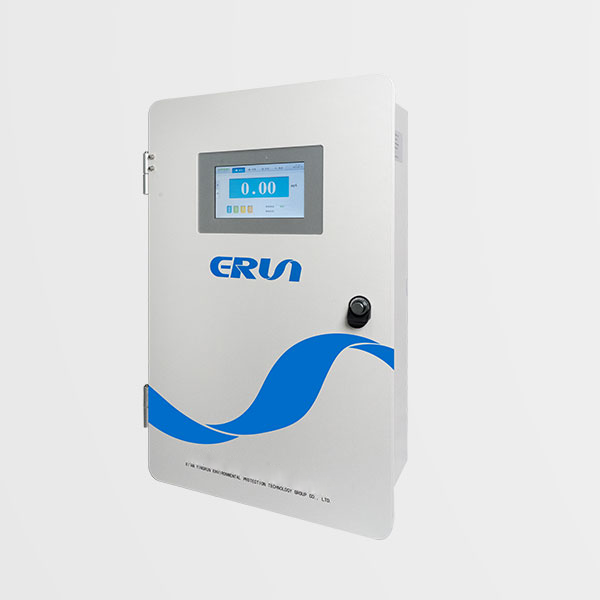

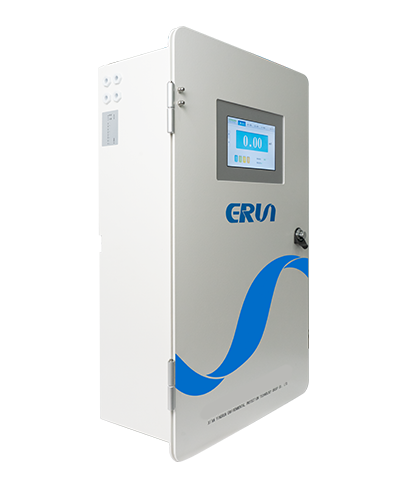

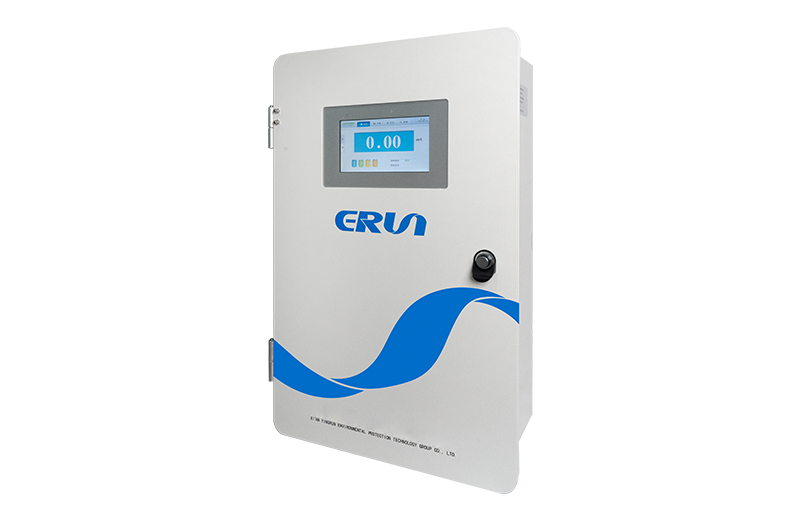

Water quality silicate on-line analyzer
Model: ERUN-SZ3-C5
Parameter: silicate
ERUN-SZ3-C5 on-line analyzer for silicate in water adopts brand-new design concept and advanced technology to continuously monitor the concentration of silicate ion in water, which can be applied in power plant, petrochemical, papermaking, metallurgy, waste heat and other industries, and it is especially suitable for the measurement of silicate content in the mixed-bed effluent, EDI ultrapure water, superheated steam and saturated steam, and it is the most trustworthy choice for the users.
Measurement range | 0-100µg/L，或0-2000µg/L |
Measurement Error | ±1% FS（0～100µg/L）；±2.5% FS（0～2000µg/L） |
resolution | 0.01mg/L (ppm) |
environmental temperature | (5～45)℃ |
Measurement period | About 12 minutes |
Reagent consumption | 1 bucket (2.0 liters)/approximately 60 days (15 minutes per cycle) |
Output signal | Isolated 4-20mA per channel |
Water flow rate | 100-200mL/min |
Power supply | DC D24V, 30W |
| Temperature of water sample | 10-45℃ |
| Water sample pressure | Less than 0.2MPa |
| External size | 450mm×690mm×200mm (L×W×D) |
| Opening size | 406×640mm |
| Relative humidity | Not more than 85% |
| weight | 18kg |
1、1-6 channels can be selected to reduce the cost.
2、It can significantly save the cost of pharmaceuticals (1/2 of the traditional dosage of silicate monitor).
3、Precision plunger pump dosing is accurate, eliminating human error, high measurement accuracy and good repeatability.
4、Photoelectric detection adopts double optical circuit structure to overcome the influence of light source drift, good long-term stability and high accuracy.
5、7 inch color touch screen, beautiful display, friendly man-machine interface, easy to operate.
6、Unique liquid circuit design, so that the agent and precision plunger pump without contact, increase service life, reduce maintenance.
7, increase the automatic cleaning technology, significantly reduce the reagent crystallization caused by the liquid line blockage failure, improve stability.
