Brand：Erun

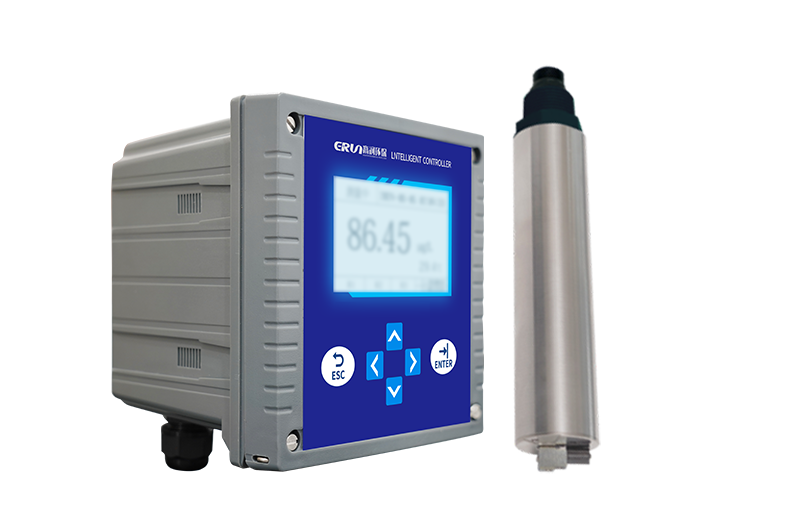

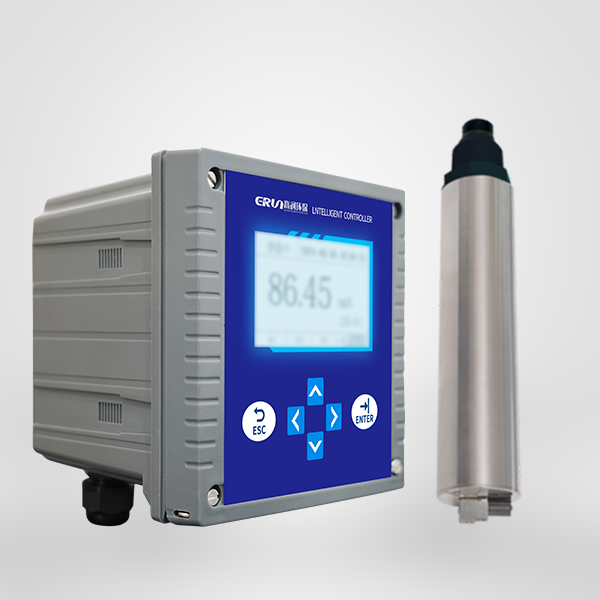

Name：Chlorophyll online water quality monitor
Model：ERUN-SZ4-A-L3
Parameter：Chlorophyll a(fluorescence method)
Chlorophyll online water quality monitor ERUN-SZ4-A-L3, integrated with the cutting-edge fluorescence sensing technology of Erun Environmental Protection, shows excellent repeatability and long-term stability, and is widely used in many fields such as rivers, lakes, ponds, marine exploration, aquaculture and drinking water sources, etc., which realises continuous, real-time and accurate monitoring of chlorophyll content in water quality.

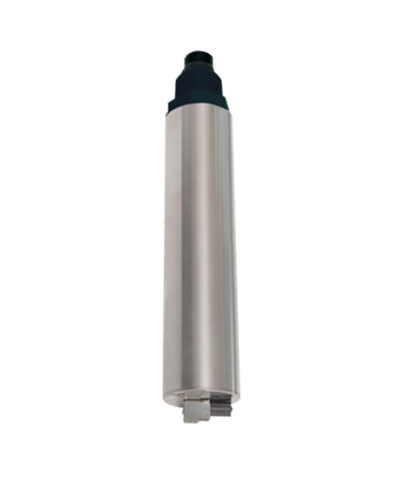

Sensor type | ERUN-L3B | ERUN-L3C |
Measurement range | 0-500μg/L | |
accuracy | ±5%or0.5μg/L | |
resolution | 0.01μg/L | |
temperature range | 0~50℃ | |
Maximum pressure | 3bar | 6 bar |
Self-cleaning system | √ | × |
sizes | Φ36mm *198.2mm | Φ22mm *175.5mm |
protection class | IP68 | |
sensor interface | RS-485，MODBUS protocols | |
power supply | DC12~24V，amps＞500mA | |
Cable Length | 10m（standard equipment），customisable | |
calibrations | Zero, one or two point calibration | |
Housing Material | titanium | |
demonstrate | LED liquid crystal display |
Automatic temperature compensation | 0~60℃ |
signal output | 0～20mA(load resistance＜750Ω) 4～20mA(load resistance＜750Ω) |
Power supply | 85～265VAC±10%,50±1Hz，power≤3W； 9～36VDC，power ≤3W |
communication output | RS485 Modbus RTU |
environmental temperature | -10℃~60℃ |
relative humidity | not greater than 90% |
sizes | 144mm*144mm*130mm |
Installation | embedded (Hole Size 138*138mm) |
weights | 0.5kg |
| The sapphire light guide structure reduces the impact of stray light, while the light window is not easily worn; |
Titanium alloy housing for better corrosion resistance and can be used in seawater environments; |
With self-cleaning brushes to prevent bio-adhesion and longer maintenance intervals; |
Built-in calibration parameters for easy field use and secondary calibration; |
Adopt LED LCD display, intelligent Chinese/English menu operation; |
Output signal: software selects 0-20mA or 4-20mA output; |
High-resistance preamplifier: high input impedance, anti-noise, strong anti-interference ability; |
Multi-parameter display on the same screen: Simultaneously display pH (or ORP) value, temperature value, two current outputs and relay working status; |
Self-set password: Users can set or change their own passwords to avoid misuse by uninvolved personnel. |
