Brand：Erun

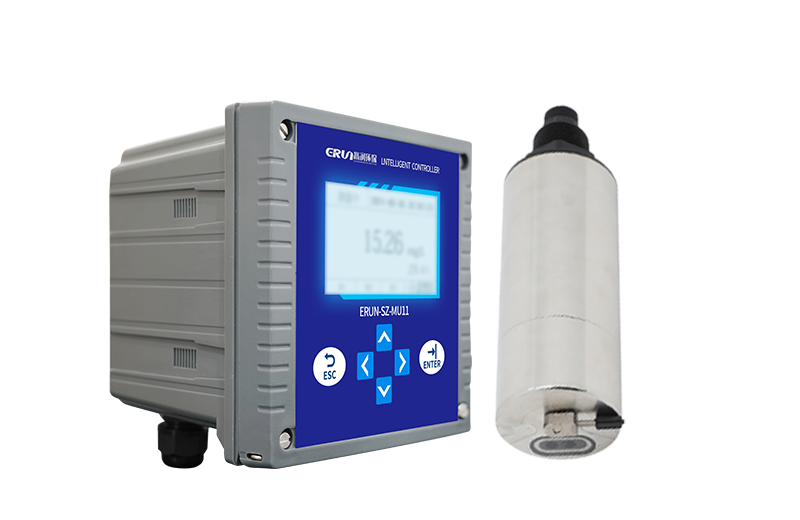

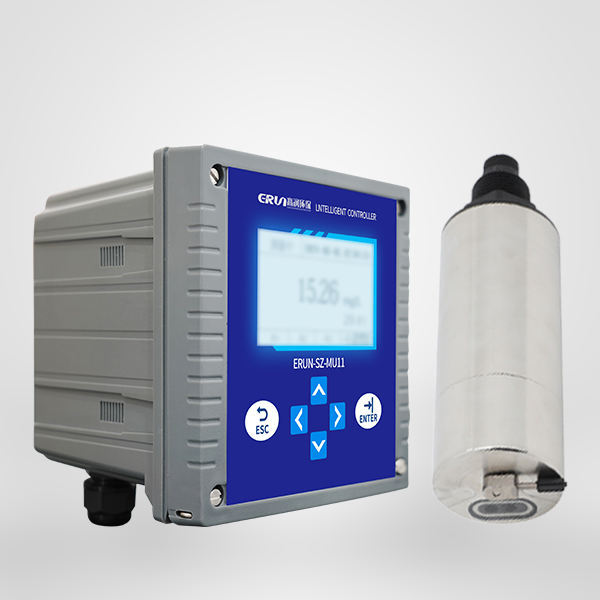

On-line analyzer for oil (PAHs) water quality in water
Model：ERUN-SZ4-A-J4C
Parameter：Oil (UV fluorescence method)

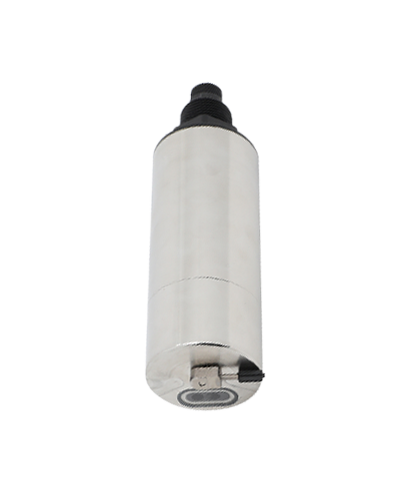

The ERUN-SZ4-A-J4C online water quality analyzer for oil (PAHs) in water, developed and manufactured by Erun Environmental Protection, stands out for its excellent efficiency and swiftness, and shows excellent measurement repeatability. The instrument is designed for real-time monitoring of ppb-level trace oil content in water bodies, ensuring accurate data. A dedicated sensor with integrated self-cleaning brush function eliminates air bubbles and oil residues and significantly reduces the risk of contamination interfering with the results, thus significantly extending maintenance intervals. Even under long-term online operation, ERUN-SZ4-A-J4C can maintain excellent stability performance, providing reliable monitoring and early warning service for oil pollution in water, which is a powerful assistant in the field of environmental protection monitoring.
Measurement range | 0-1100ppb(BTEX)、0-1000 ppb(PAH)、0-60ppm(BTEX) |
temperature range | 0~50℃ |
resolution | 0.01 |
linearity | R2＞0.999（Continuous dilution of standard solution） |
sensor interface | RS-485，MODBUS protocol |
protection class | IP68 |
calibrations | Zero, one or two point calibration |
Cable Length | Standard 10m, customizable |
Maximum pressure | 3bar |
Self-cleaning system | √ |
power supply | DC12~24V，Current > 1A |
sizes | Φ50mm*176.3mm |
Housing Material | 316L (custom titanium alloy available) |
demonstrate | LED liquid crystal display |
Automatic temperature compensation | 0~60℃ |
signal output | 0～20mA(Load resistance＜750Ω) 4～20mA(Load resistance＜750Ω) |
Power supply | 85～265VAC±10%,50±1Hz，Power ≤3W； 9～36VDC，Power ≤3W |
communication output | RS485 Modbus RTU |
environmental temperature | -10℃~60℃ |
relative humidity | Not more than 90% |
sizes | 144mm*144mm*130mm |
Installation | Recessed (Opening size 138*138mm) |
weights | 0.5kg |
On-line measurement of PAH (oil) content in water by UV fluorescence method with high sensitivity; |
Imported high-precision 254nm UV LED light source, high stability, small drift, long life; |
254nm excitation light, higher sensitivity for refined oil measurement; |
With self-cleaning brush to prevent microbial adhesion and long maintenance intervals; |
Adopts RS485 digital output and supports Modbus protocol; |
Built-in calibration parameters for easy field use and secondary calibration. |
Adopt LED LCD display, intelligent Chinese/English menu operation; |
Output signal: software selects 0-20mA or 4-20mA output; |
High-resistance preamplifier: high input impedance, anti-noise, strong anti-interference ability; |
Multi-parameter display on the same screen: Simultaneously display pH (or ORP) value, temperature value, two current outputs and relay working status; |
| Self-set password: Users can set or change their own passwords to avoid misuse by uninvolved personnel. |
