Brand：Erun

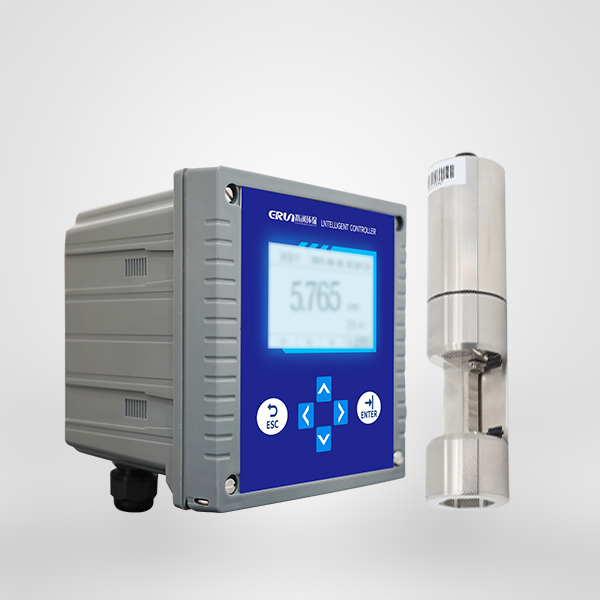

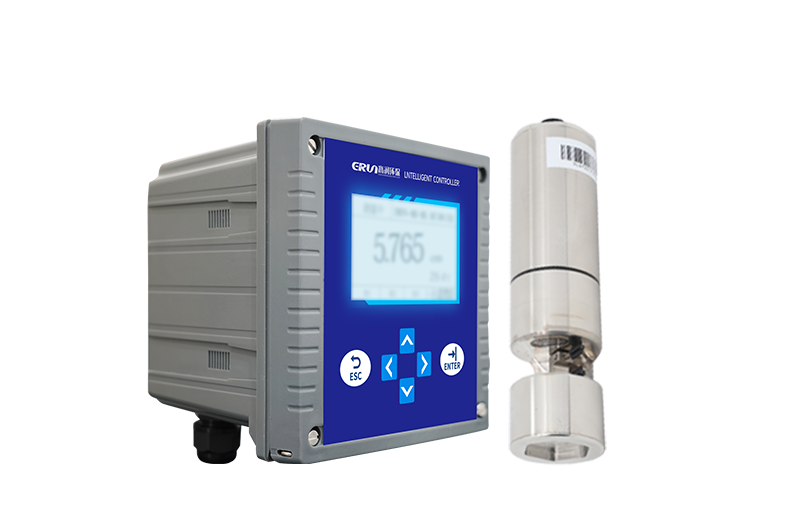

Name：Online water transparency monitor
Model：ERUN-SZ4-A-A8C
Parameter：Transparency (transmittance)

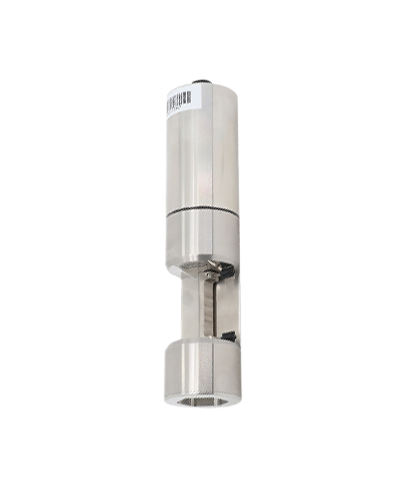

ERUN-SZ4-A-A8C water transparency online detector sensor adopts the principle of transmission measurement, customized optics, compact size, easy to install and maintain, no reagents, no pollution, more economical and environmentally friendly. With automatic cleaning brush, can eliminate air bubbles, reduce the impact of contamination on the measurement, so that the maintenance cycle is longer, long-term online use can also maintain excellent stability. Widely used in surface water, tap water, sewage, aquaculture industry and other water quality transparency for continuous real-time monitoring.
range | 0-500cm |
Measuring principle | transmittance |
accuracy | ±5% |
resolution | 0.1cm |
temperature range | 0-50℃ |
resolution | 0.01 mg/L |
Maximum pressure | 3bar |
protection class | IP68 |
sensor interface | RS-485，MODBUS protocol |
power supply | DC9~24V，Current > 1A |
sizes | Φ50mm *211.5mm |
Cable Length | 10m (standard), customizable |
calibrations | 1-point or 2-point calibration |
Housing Material | 316L (customizable titanium alloy) |
demonstrate | LED liquid crystal display |
Automatic temperature compensation | 0~60℃ |
signal output | 0～20mA(Load resistance＜750Ω) 4～20mA(Load resistance＜750Ω) |
Power supply | 85～265VAC±10%,50±1Hz，Power ≤3W； 9～36VDC，Power ≤3W |
communication output | RS485 Modbus RTU |
environmental temperature | -10℃~60℃ |
relative humidity | Not more than 90% |
sizes | 144mm*144mm*130mm |
Installation | Recessed (Opening size 138*138mm) |
weights | 0.5kg |
Adopting the principle of transmittance measurement to ensure the measurement accuracy and stability; |
Digital sensor, RS485 output, standard Modbus protocol; |
With a self-cleaning brush that removes interference from adherents on optical lenses; |
Built-in calibration parameters for easy field use and secondary calibration; |

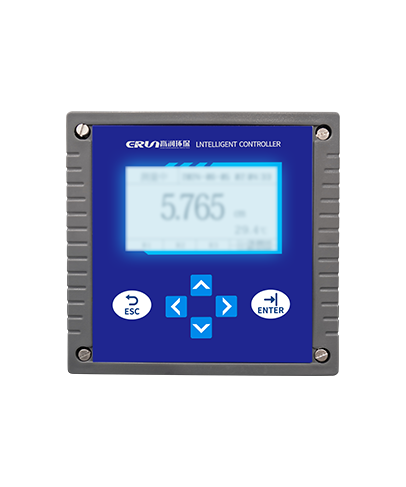

Adopt LED LCD display, intelligent Chinese/English menu operation; |
Output signal: software selects 0-20mA or 4-20mA output; |
High-resistance preamplifier: high input impedance, anti-noise, strong anti-interference ability; |
Multi-parameter display on the same screen: Simultaneously display pH (or ORP) value, temperature value, two current outputs and relay working status; |
| Self-set password: Users can set or change their own passwords to avoid misuse by uninvolved personnel. |
