Water quality ozone online monitor

ERUN-SZ1S-A-K3

Water quality ozone online monitor
Used in drinking water treatment plants, tank farms, drinking water distribution networks, swimming pools, cooling circulating water, water quality treatment projects, etc.
Water quality ozone online monitor
Water quality ozone online monitor
Water quality ozone online monitor
Water quality ozone online monitor
Water quality ozone online monitor
Water quality ozone online monitor
Introduction

Brand:Erun

Name:Water quality ozone online monitor

Model:ERUN-SZ1S-A-K3

methodologies:Ozone (constant pressure method)

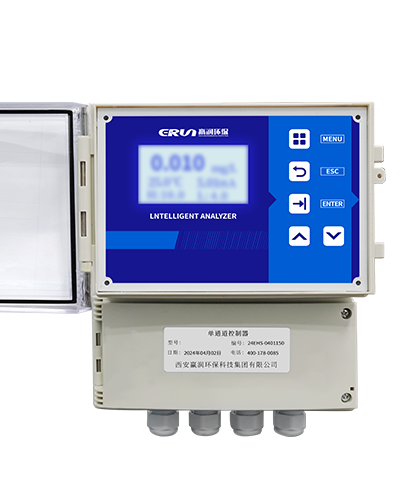

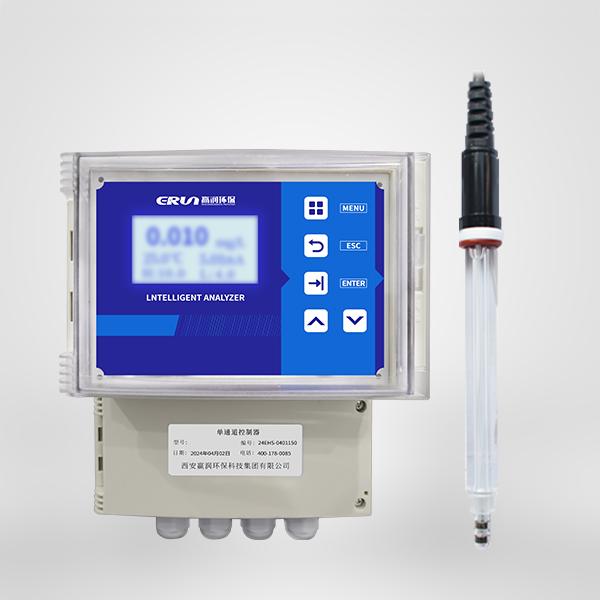

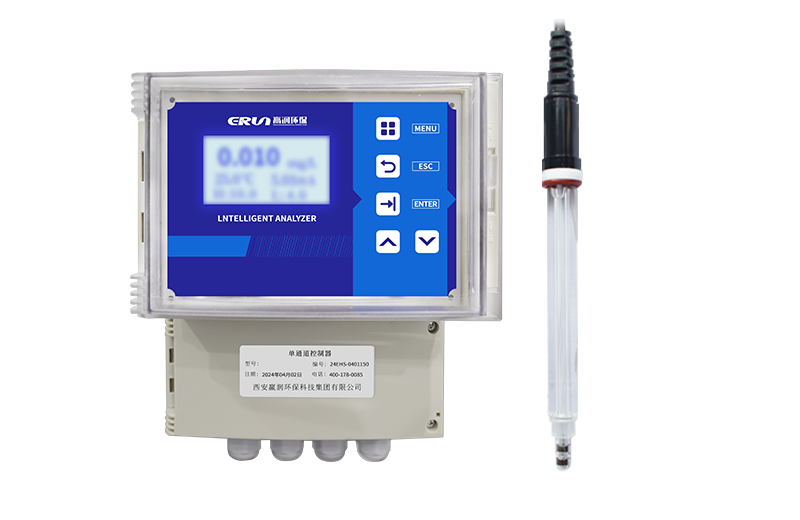

This product is a new generation of intelligent water quality detector independently developed by our company, which adopts advanced non-membrane constant voltage sensor, no need to replace the diaphragm and agent, high sensitivity, rapid signal response, accurate measurement, stable performance and simple maintenance. It is characterized by Chinese menu operation, high stability, superior repeatability, multi-function, etc. It can accurately measure the ozone value and temperature value in the solution.

Parameters

Water quality ozone online monitor ERUN-SZ1S-A-K3 controller technical parameters:

Gauge Size:

218*183*126mm

Power supply:

AC220V,DC24V

relays:

2 or 4 groups of relays, divided into high and low point alarm control Load AC220V/3A

Analog output:

1-channel or 2-channel 4~20mA (4-wire), maximum load 750Ω

Digital Interface:

1Road or 2 RS485 (ModBus protocol)

Protection Rating:

IP65

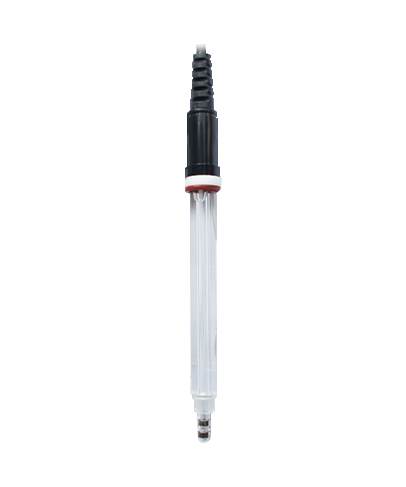

Water quality ozone online monitor sensor technical parameters:

Measurement range:

0-20.00 mg/L(ppm)

Resolution:

0.01mg/l

Accuracy:

±1%FS

Protection Rating:

IP65

Water quality ozone online monitor sensor size and installation schematic:

Installation Method Schematic

Dimensions

水质臭氧在线监测仪

水质臭氧在线监测仪




Features

Water quality ozone online monitor ERUN-SZ1S-A-K3 controller Product Features:

Large dot-matrix liquid crystal display, Chinese menu operation.

Factory settings can be restored.

Watchdog function: ensure that the meter will not die.

Automatic/manual temperature compensation function.

Power-down protection > 10 years.

The detection value can be set for incremental compensation.

Multi-parameter simultaneous display: Detection value, temperature, output current, alarm point, etc. are displayed at the same time, intuitive and easy to read.
