Brand：Erun

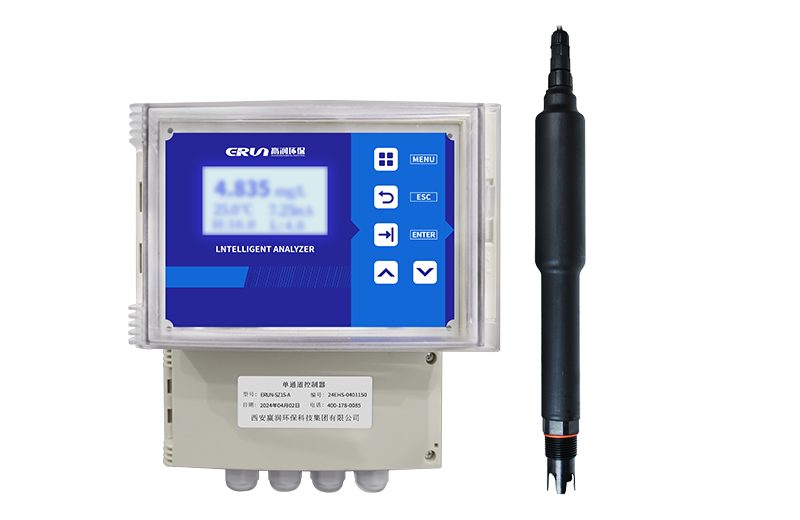

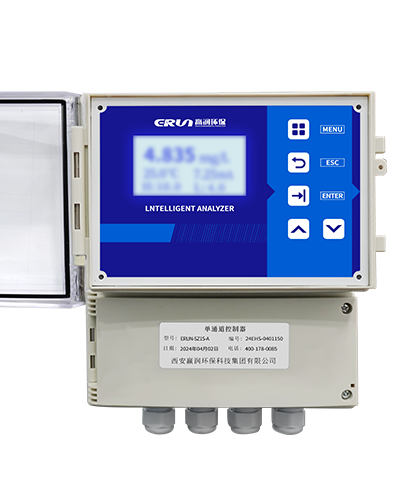

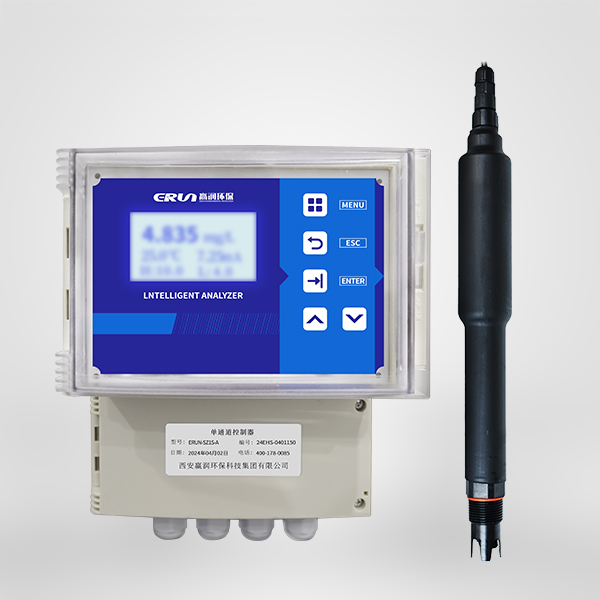

Name：Online Ammonia Nitrogen Water Quality Monitor
Model：ERUN-SZ1S-A-E6
methodologies：Ammonia nitrogen (electrode method)

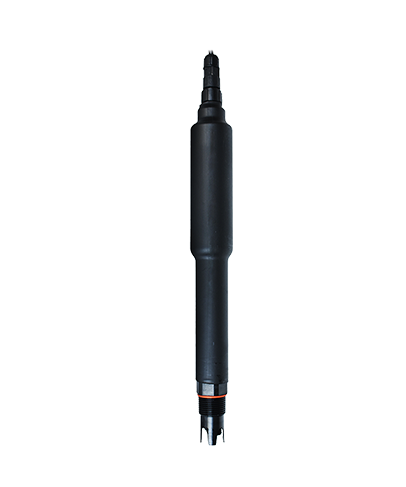

This product uses the ion-selective electrode method to measure ammonia nitrogen concentration. The ammonia ion-selective electrode directly detects ammonium ions in the aqueous environment to determine the concentration of ammonia nitrogen. The pH electrode is used as a reference electrode for better stability. Since the measurement result of the sensor is interfered by the dissolution of potassium ions, it is necessary to use potassium ion compensation when the concentration of potassium ions in water is high. Ammonia nitrogen sensor consists of ammonium ion selective electrode, potassium ion (optional), pH electrode, temperature electrode together to form a one-piece sensor, these parameters can correct each other's ammonia nitrogen measurement value, and at the same time to realize multi-parameter measurement.
Gauge Size: | 218*183*126mm |
Power supply: | AC220V，DC24V |
relays： | 2 or 4 groups of relays, divided into high and low point alarm control Load AC220V/3A |
Analog output: | 1-channel or 2-channel 4～20mA (4-wire), maximum load 750Ω |
Digital Interface: | 1Road or 2 RS485 (ModBus protocol) |
Protection Rating: | IP65 |
Measurement range: | 0~1000mg/L NH4-N |
Resolution: | 0.1mg/L |
Accuracy: | 5% |
Protection Rating: | IP68 |
Includes NH4/PH reference electrode, self-cleaning brush with automatic temperature and PH compensation, electrodes can be replaced individually | |
Large dot-matrix liquid crystal display, Chinese menu operation. | Factory settings can be restored. |
Watchdog function: ensure that the meter will not die. | Automatic/manual temperature compensation function. |
Power-down protection > 10 years. | The detection value can be set for incremental compensation. |
Multi-parameter simultaneous display: Detection value, temperature, output current, alarm point, etc. are displayed at the same time, intuitive and easy to read. | |
