Brand：Erun

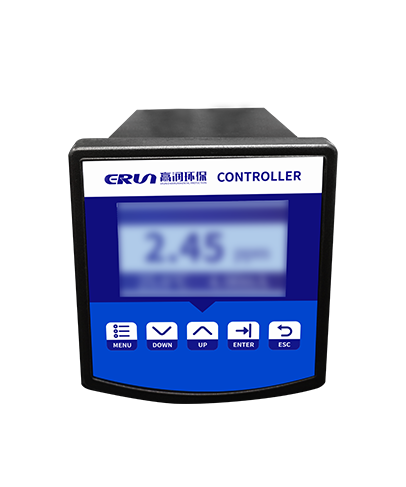

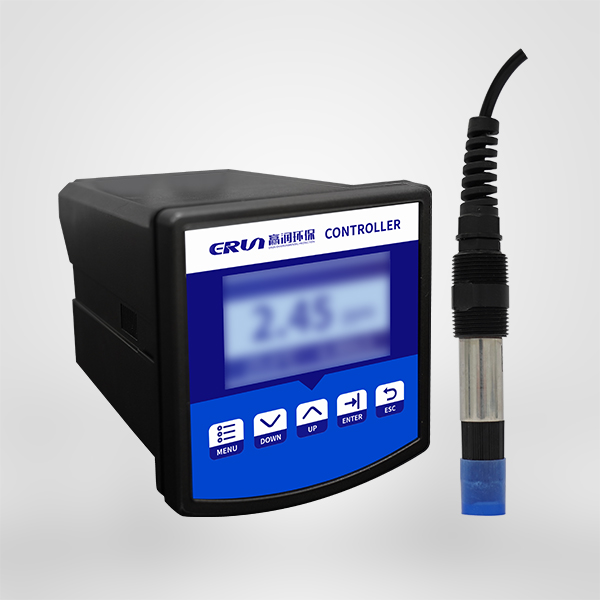

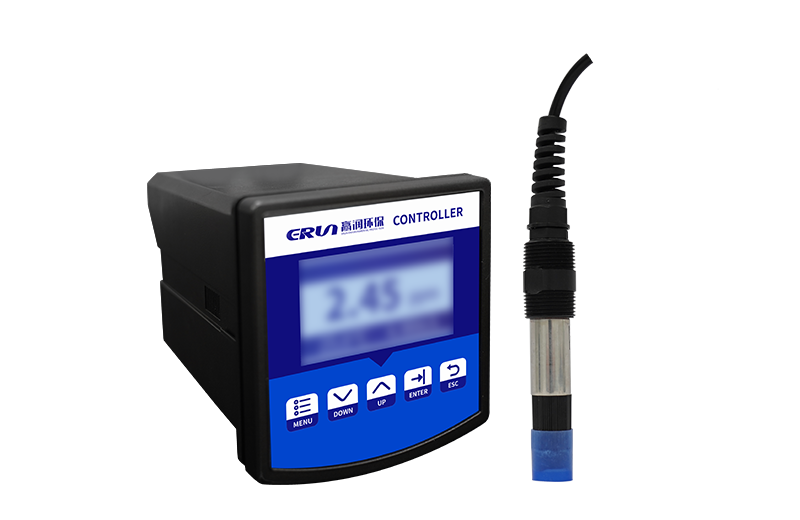

Residual chlorine water quality online monitor
Model：ERUN-SZ1-A-K6

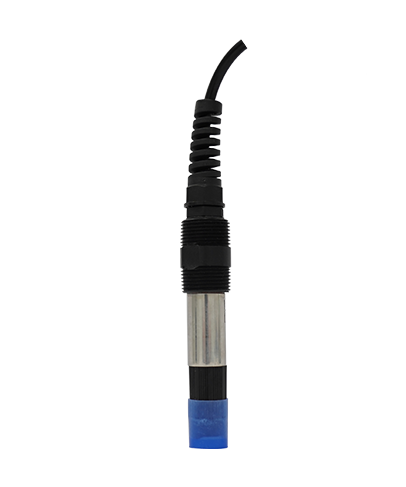

Residual chlorine (polarographic method)
Residual chlorine detector is an on-line intelligent residual chlorine monitor produced by our company, which adopts imported components and permeation membrane head, based on polarographic analysis technology and advanced production process and surface paste technology. Using this series of advanced analyzing technology, it ensures the stable reliability and accuracy of the instrument for long-term work. With Chinese/English menu operation, notepad storage of measurement data, 485 communication and other functions. Widely used in circulating water self-control dosing, swimming pool chlorination control as well as drinking water treatment plant, drinking water distribution network, swimming pools, hospital wastewater, water quality treatment works, etc. for continuous monitoring and control of residual chlorine content in water solution.
Mounting method: | Disk mounted (recessed) |
Gauge Size: | 100*106*168mm, opening size: 92*92mm |
Power supply: | AC220V，DC24V/12V |
Relay: | 2 sets of relays, divided into high and low point alarm control Load AC220V/3A |
Analog output: | 4～20mA (4-wire), Maximum load 750Ω |
Digital Interface: | RS485 (ModBus protocol) |
Protection Rating: | IP65 |
Material: | ABS |
Measurement range: | hyposulphurous acid（HOCL）：0-10.00 mg/L Residual chlorine：0-20.00 mg/L Temperature：0-60℃ |
Resolution: | 0.1‰ |
Precision: | ±2.0%FS |
Temperature compensation: | 0～100℃ |
1、Method of installation schematic diagram. | 2、Sensor size schematic |
 |  |
1、History curve (optional): It can automatically record the history curve of 50 groups of measurement data respectively, and can query the data and set the sampling time. | 2、Watchdog function to ensure that the meter will not die. |
3、with RS-485 communication interface (MODBUS protocol partially compatible), can be converted to RS-232. | 4、Power down protection＞10 years. |
5、 large screen dot matrix LCD, Chinese menu operation, multi-parameter simultaneous display: detection value, temperature, output current, alarm points and other simultaneous display, intuitive and easy to read. | 6、Automatic identification of standard liquid, can restore factory settings. |
7、can store 50 measurement data respectively, users can record the measurement data as needed. | 8、Automatic temperature compensation function. |
9、The detection value corresponding to the 4 to 20 mA current output can be set arbitrarily. | 10、It can be equipped with our company's upper computer online acquisition software for data acquisition and processing. |
