Brand：Erun

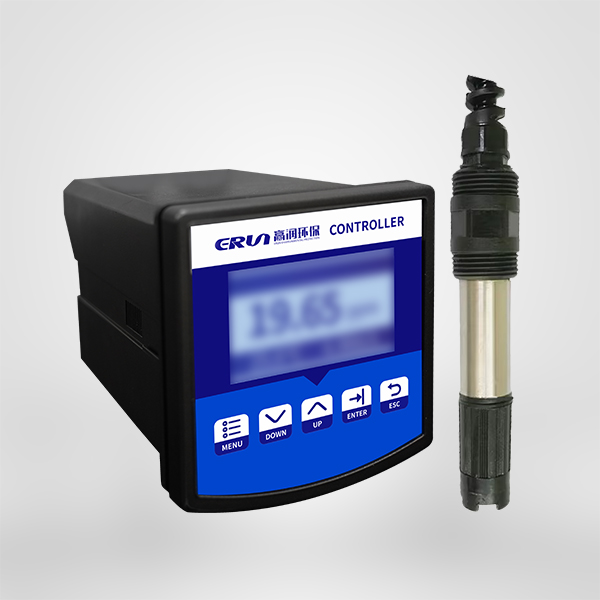

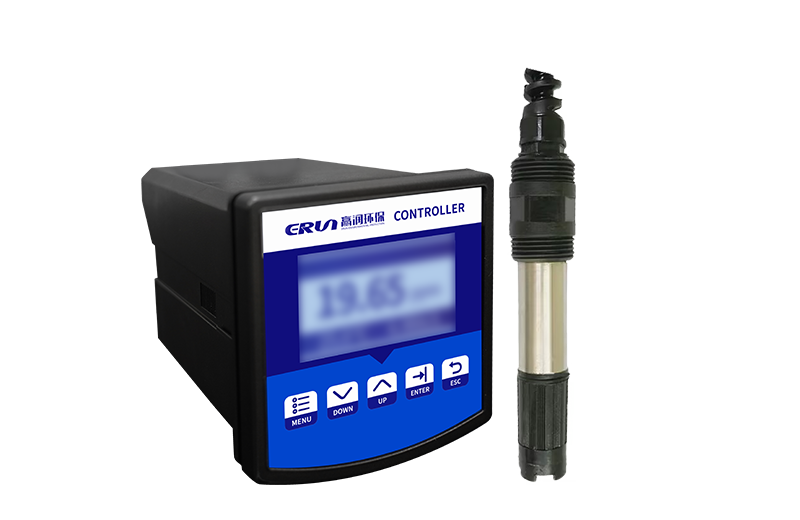

Dissolved oxygen water quality on-line analyzer
Model：ERUN-SZ1-A-A5

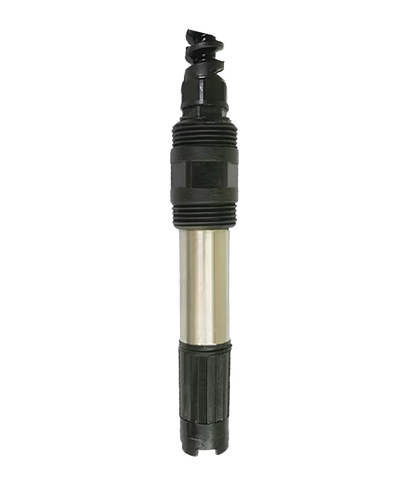

Dissolved oxygen DO (polarography)
Online dissolved oxygen meter is an online intelligent dissolved oxygen detector produced by our company by introducing foreign technology, adopting imported components and dissolved oxygen membrane head, based on polarographic analysis technology, and advanced production process and surface paste technology.The use of this series of advanced analytical techniques ensures that the instrument works stably, reliably and accurately for a long period of time. With Chinese menu operation, notepad storage of measurement data, 485 communication and other functions.Widely used in continuous monitoring of dissolved oxygen value in solution of chemical fertilizer, metallurgy, environmental protection water treatment engineering, pharmacy, biochemistry, food, breeding and tap water.
Mounting method: | Disk mounted (recessed) |
Gauge Size: | 100*106*168mm, opening size: 92*92mm |
Power supply: | AC220V，DC24V/12V |
Relay: | 2 sets of relays, divided into high and low point alarm control Load AC220V/3A |
Analog output: | 4～20mA (4-wire), Maximum load 750Ω |
Digital Interface: | RS485 (ModBus protocol) |
Protection Rating: | IP65 |
Material: | ABS |
Measurement range: | 0～200.0 ug/L , 0～20.00 mg/L, range switching automatically; |
Resolution: | 0.1ug/L,0.0 1mg/L,0.1℃ |
Precision: | ug/L: ±1.0%FS; mg/L:±1%FS, ±0.3°C |
| Automatic temperature compensation: | 0~60℃ |

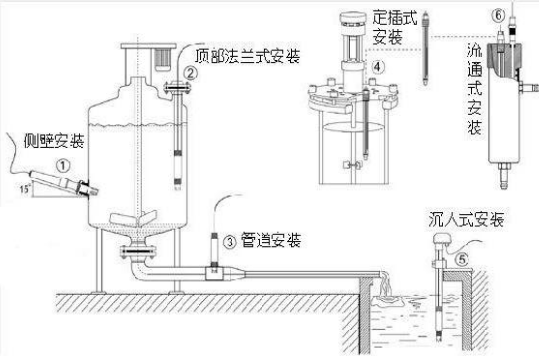

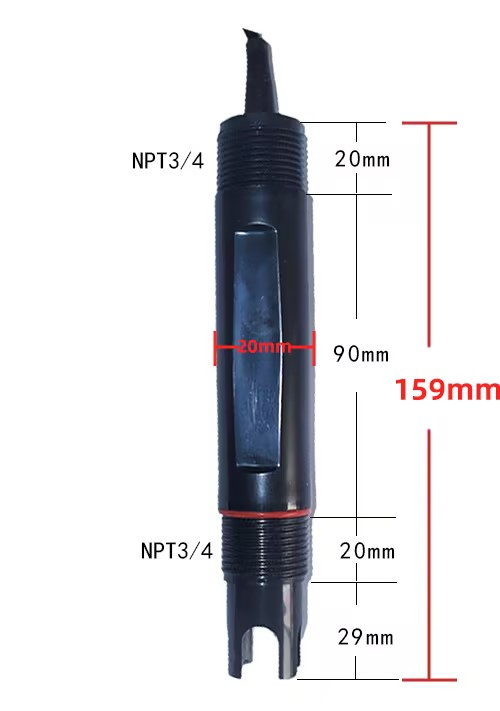

Schematic diagram of the mounting method: | Schematic diagram of sensor dimensions: |
 |  |
1、History curve (optional): It can automatically record the history curve of 50 groups of measurement data respectively, and can query the data and set the sampling time. | 2、Watchdog function to ensure that the meter will not die. |
3、with RS-485 communication interface (MODBUS protocol partially compatible), can be converted to RS-232. | 4、Power down protection＞10 years. |
5、 large screen dot matrix LCD, Chinese menu operation, multi-parameter simultaneous display: detection value, temperature, output current, alarm points and other simultaneous display, intuitive and easy to read. | 6、Automatic identification of standard liquid, can restore factory settings. |
7、can store 50 measurement data respectively, users can record the measurement data as needed. | 8、Automatic temperature compensation function. |
9、The detection value corresponding to the 4 to 20 mA current output can be set arbitrarily. | 10、It can be equipped with our company's upper computer online acquisition software for data acquisition and processing. |
