Brand: Erun

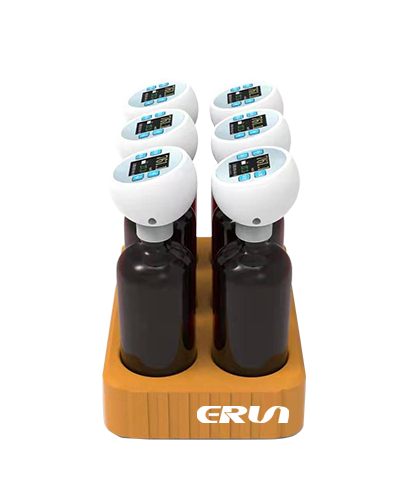

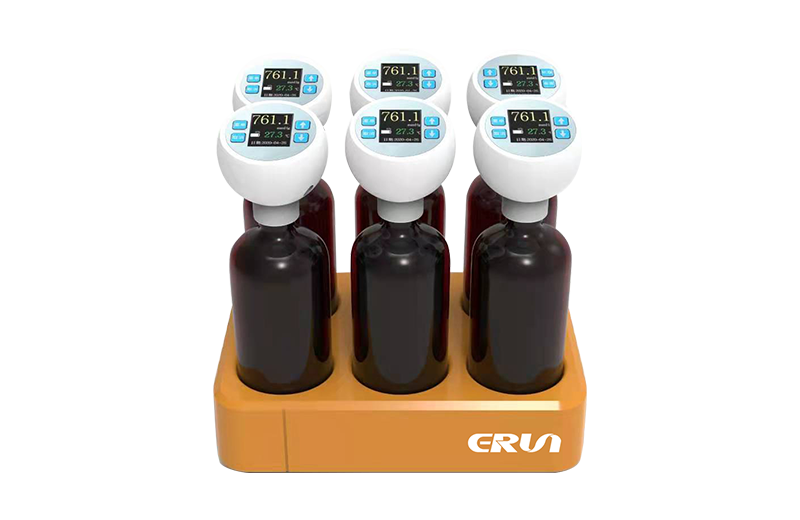

Intelligent BOD water quality tester
Model: ERUN-SLBOD-B
BOD (5-day incubation method)
BOD Biochemical Oxygen Demand Detector is based on the national standard "HJ505-2009" 5-day incubation method, simulating the biological degradation process of organic matter in nature, and adopting simple, safe and reliable non-mercury differential pressure sensing method to measure BOD in water.
Fully intelligent design, leading R & D process and design and manufacturing, the experimental process without laboratory personnel on duty.
It is applicable to sewage enterprises, environmental monitoring, sewage treatment plants, third-party testing organizations, scientific research, universities and other fields of biochemical oxygen demand determination.
Measurement range: | 0-4000mg/L(direct measurement) | Resolution: | 0.01mg/L |
Sampling points: | ≤60/cycle | Principle of Measurement: | mercury-free differential pressure method |
Measurement accuracy: | ±8% | Data storage: | Stores 10 years of test data |
Culture bottle volume: | 580ml | Stirring: | Program controlled, magnetic stirring |
Incubation temperature: | 20±1℃ | Measurement cycle: | 1 day - 30 days |
Battery life: | ≥2 Year | Measurement Quantity: | Independent 6-group detection |
Power Configuration: | AC220V±10%/50-60HZ |
1. Six samples can be measured at the same time; |
2. Directly read the BOD concentration value, no need to calculate; |
3. Automatically complete the measurement process, no need to be manned; |
4. The incubation cycle is adjustable and can be selected according to the demand; |
5. Large size LCD display, intuitive and clear, easy to select the project |
6. The experimental link without pipeline design, to avoid pipeline aging, air leakage and other drawbacks; |
7. The measurement range can be selected, in the water sample concentration is less than 4000g / L, without dilution; |
8. Six independent test terminals, in the detection process can be added at any time to the new measurement group; |
9. Non-mercury differential pressure design, high precision, without conversion, and to ensure the safety and health of laboratory personnel |
10. The meter automatically records the measurement data, a test cycle can choose 60 sampling points, test data more accurate; |
11. The test terminal comes with a large-capacity battery, battery life of more than 2 years, the test process is not affected by short-term power outages in the external environment. |
