Brand：Erun

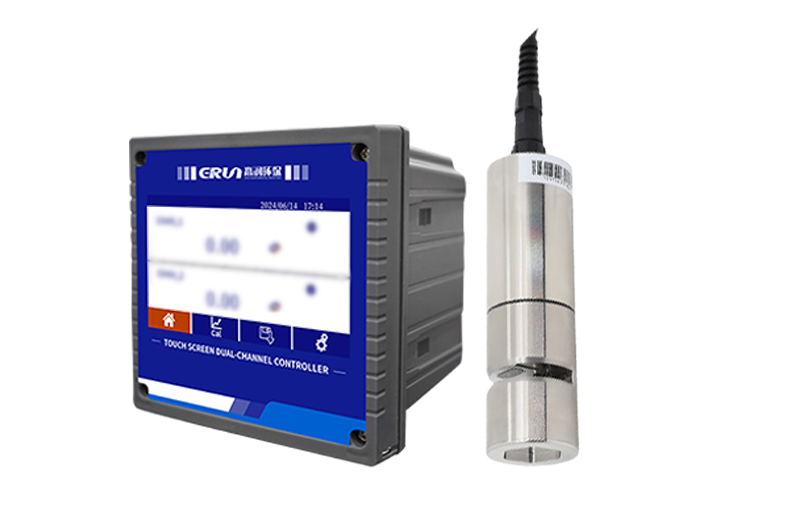

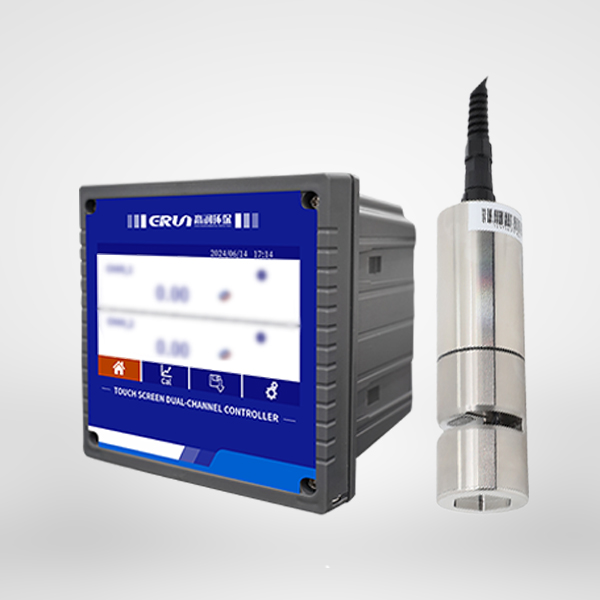

COD online water quality monitor
Model：ERUN-SZ2-B-J5
Parameter: COD
Based on the principle of ultraviolet absorption method, by measuring the degree of absorption of these organic substances on the 254nm wavelength ultraviolet light, you can accurately measure the dissolved COD organic pollutants in the water content, the sensor does not require reagents, pollution-free, more economical and environmentally friendly, internal integration of all the way to the turbidity detection of the light source, the turbidity of the water body to be measured by the interference of automatic compensation. With automatic cleaning brush device, even if long-term monitoring still has excellent stability, a wide range of surface water, industrial discharges of sewage, sewage plant water quality COD for continuous real-time monitoring.

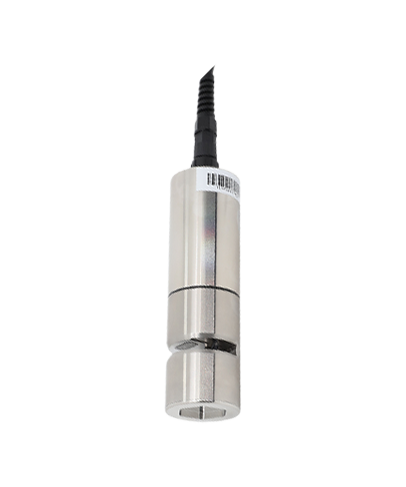

Sensor Model | ERUN-J5A | ERUN-J5B |
COD range | 0-500mg/L | 0-1500mg/L |
TOC range | 0-180 mg/L | 0-600 mg/L |
Turbidity range | 0-300NTU | 0-500NTU |
COD Accuracy | ±5% | |
resolution | 0.01 mg/L | |
temperature range | 0~50℃ | |
protection class | IP68 | |
sensor interface | RS-485，MODBUS protocol | |
power supply | DC12~24V，Current > 1A | |
sizes | Φ50mm *179mm | |
Cable Length | 10m (standard), customizable | |
Housing Material | 316L (custom titanium alloy available) | |

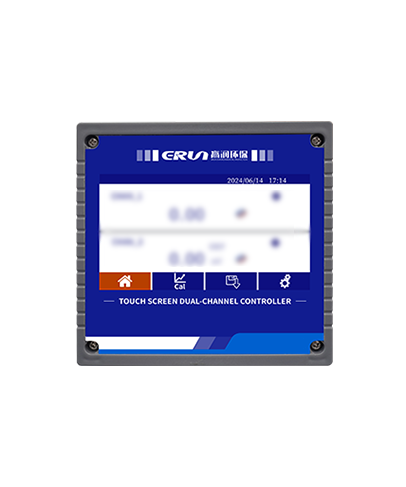

demonstrate | 7-inch color touch screen |
power supply | 110-220V AC |
exports | 1 circuit RS485, 2 circuits 4-20mA |
relay (electronics) | 2 relays, programmable response type and response value |
communication protocols | Standard Modbus RS485 RTU communication for real-time transmission of measured values |
material | ABS shell |
protection class | IP54 |
Storage temperature | -20~70℃ |
operating temperature | -15℃~60℃ |
sizes | 151.44mm*144.5mm*117mm(length*width*high) |
Installation | Wall or panel mounting (opening size 138*138mm) |
weights | 0.8kg |
Data storage | Continuous storage > 2 years |
Measurement of parameters such as COD, TOC, turbidity and temperature. |
Automatically compensates for turbidity disturbances for excellent test performance; |
With self-cleaning brushes to prevent bio-adhesion and longer maintenance intervals; |
Built-in calibration parameters for easy field use and secondary calibration; |
Automatically prompts error and alarm messages, and realizes alarm signal uploading; |
Support 4-20mA, MODBUS RS485 and other data transmission methods; |
With time display, data storage and export function, to master the monitoring parameters change dynamics; |
Adopting 7-inch color touch screen, the operation interface is simple, easy for users to learn, reliable system and low maintenance; |
Wall mounting, panel mounting, etc. are possible |
