Brand：Erun

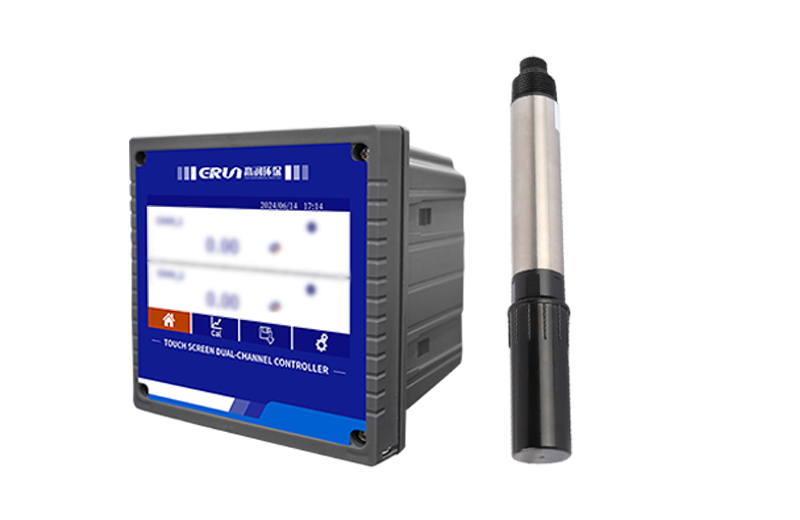

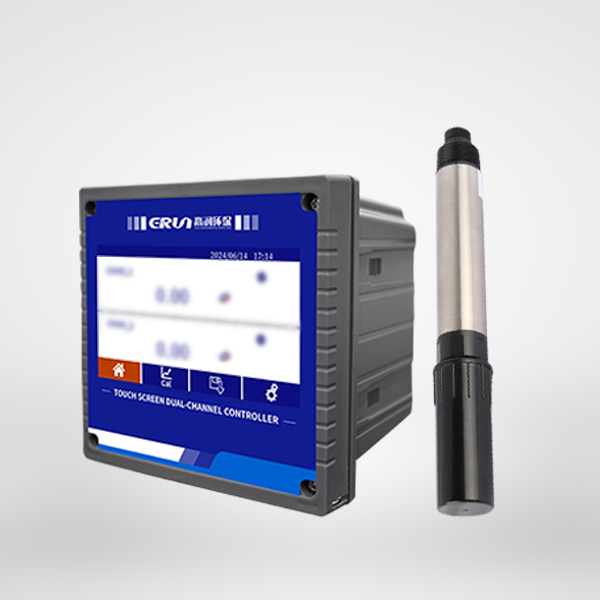

Online pH Water Quality Monitor
Model：ERUN-SZ2-B-B7A
Parameter: pH

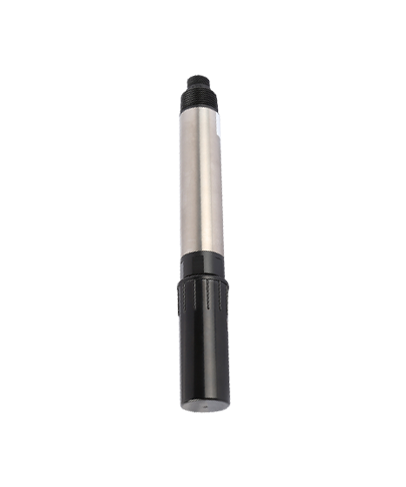

Water pH online sensor adopts long-life industrial online electrode, built-in temperature sensor automatic temperature compensation, suitable for long-term online monitoring use. The sensor adopts RS485 digital output and supports Modbus protocol, which is convenient for networking and system integration without controller. Widely used in water quality treatment, hydrological monitoring, wastewater treatment swimming pools, industrial control, biology and other fields of water quality pH for continuous real-time monitoring.
Measurement range | 0~14.00(PH) |
accuracy | ±0.02 PH |
resolution | 0.01 |
temperature range | 0~50℃ |
protection class | IP68 |
sensor interface | RS-485，MODBUS protocol |
Maximum operating pressure | 3bar |
Power supply information | DC12~24V，Current ≥ 1A |
sizes | Φ28 mm *194 mm (without protective cap) |
makings | POM+aluminum alloy |
Cable Length | 10 meters (default), customizable |
calibrations | Two or three point calibration |

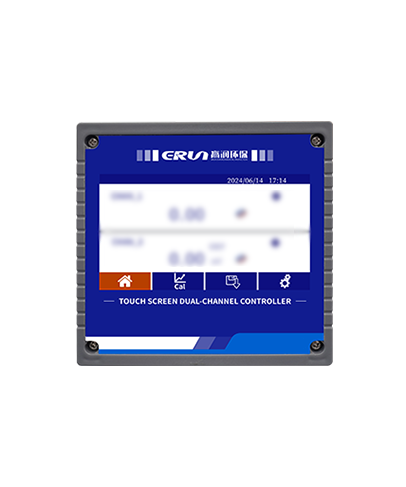

demonstrate | 7-inch color touch screen |
power supply | 110-220V AC |
exports | 1 circuit RS485, 2 circuits 4-20mA |
relay (electronics) | 2 relays, programmable response type and response value |
communication protocols | Standard Modbus RS485 RTU communication for real-time transmission of measured values |
material | ABS shell |
protection class | IP54 |
Storage temperature | -20~70℃ |
operating temperature | -15℃~60℃ |
sizes | 151.44mm*144.5mm*117mm |
Installation | Wall or panel mounting (opening size 138*138mm) |
weights | 0.8kg |
Data storage | Continuous storage > 2 years |
Adopting high performance industrial on-line electrode, it can work stably for a long time; |
Adopts RS485 digital output and supports Modbus protocol; |
Built-in temperature sensor with automatic temperature compensation. |
Built-in calibration parameters, factory calibrated accurately, ready to install and use; |
No electrolyte required, high interference immunity, no need for frequent calibration; |
Automatically prompts error and alarm messages, and realizes alarm signal uploading; |
Support 4-20mA, MODBUS RS485 and other data transmission methods; |
With time display, data storage and export function, to master the monitoring parameters change dynamics; |
Adopting 7-inch color touch screen, the operation interface is simple, easy for users to learn, reliable system and low maintenance; |
Wall mounting, panel mounting, etc. are possible |
