Brand：Erun

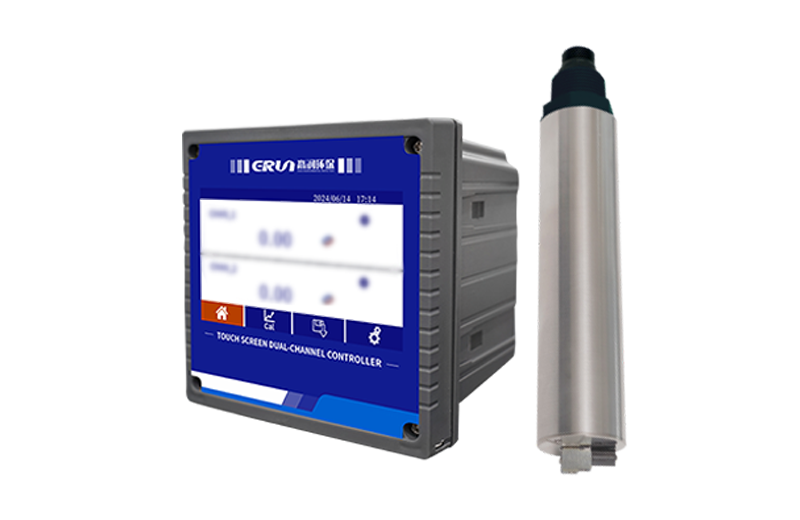

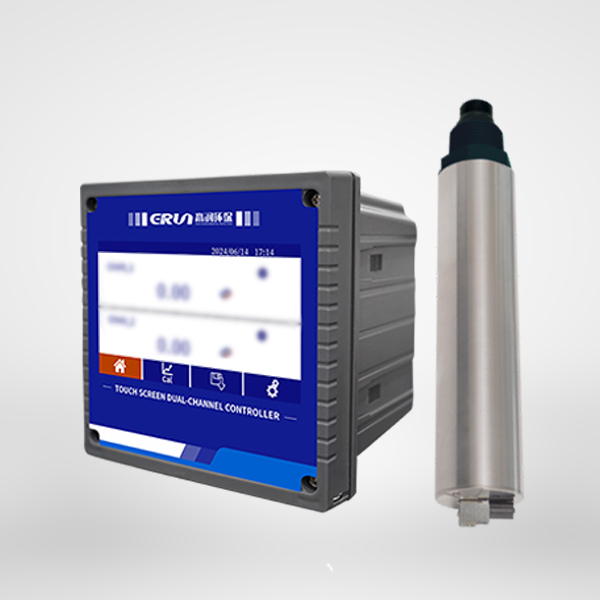

Online sludge concentration water quality monitor
Model：ERUN-SZ2-B-A6

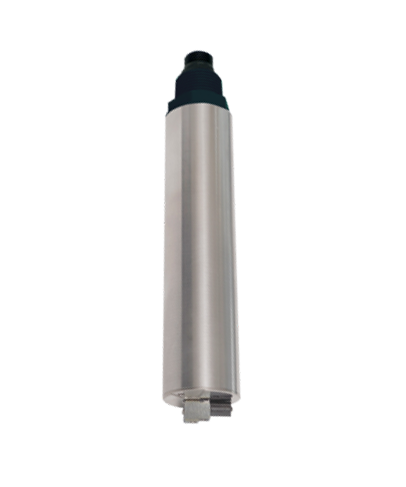

Sludge concentration (infrared scattering method)
The sludge concentration sensor adopts near-infrared LED light source and WinRun's unique adaptive software algorithm, which can effectively remove the interference of external light. The sensor does not require reagents, no pollution, more economical and environmentally friendly; equipped with an automatic cleaning brush can eliminate air bubbles, reduce the impact of contamination on the measurement, so that the maintenance cycle is longer, long-term online use can maintain excellent stability. Widely used in surface water, municipal sewage, industrial wastewater, sewage treatment, industrial processes and aquaculture water sludge concentration for continuous real-time monitoring.
transducers | ERUN- A6B | ERUN- A6C |
Measurement range | 0.5~4000mg/L （selectable 0~15000 mg/L） | 0~50000 mg/L |
accuracy | ±5% | ±5%（Depends on the homogeneity of the activated sludge） |
resolution | 0.1 mg/L | 0.1 mg/L |
temperature range | 0~50℃ | |
protection class | IP68 | |
sensor interface | RS-485，MODBUS protocol | |
calibrations | One or two point calibration | |
Maximum pressure | 3bar | |
Self-cleaning system | One-piece self-cleaning brush | |
power supply | DC9~24V，Current >500mA | |
Cable Length | Standard 10m, customizable | Standard 10m, customizable |
sizes | Φ36mm*198.2mm | Φ55mm*214mm |
Housing Material | aluminum alloy | POM+316L |

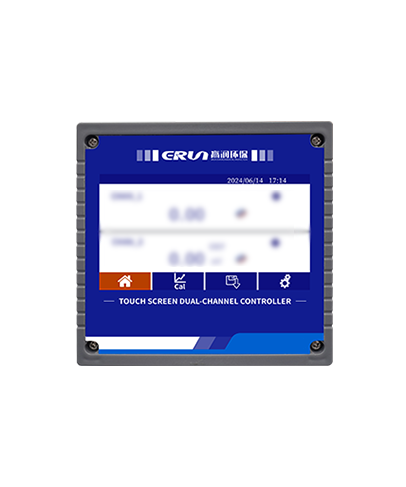

demonstrate | 7-inch color touch screen |
power supply | 110-220V AC |
exports | 1 circuit RS485, 2 circuits 4-20mA |
relay (electronics) | 2 relays, programmable response type and response value |
communication protocols | Standard Modbus RS485 RTU communication for real-time transmission of measured values |
material | ABS shell |
protection class | IP54 |
Storage temperature | -20~70℃ |
operating temperature | -15℃~60℃ |
sizes | 151.44mm*144.5mm*117mm |
Installation | Wall or panel mounting (opening size 138*138mm) |
weights | 0.8kg |
Data storage | Continuous storage > 2 years |
Adopts infrared scattered light technology with good repeatability and stability; |
Sapphire optical windows with custom filters are less susceptible to ambient light and chromaticity interference; |
Digital sensor, RS485 output, MODBUS protocol; |
Built-in calibration parameters for easy field use and secondary calibration. |
Automatically prompts error and alarm messages, and realizes alarm signal uploading; |
Support 4-20mA, MODBUS RS485 and other data transmission methods; |
With time display, data storage and export function, to master the monitoring parameters change dynamics; |
Adopting 7-inch color touch screen, the operation interface is simple, easy for users to learn, reliable system and low maintenance; |
Wall mounting, panel mounting, etc. are possible |
