Brand：Erun

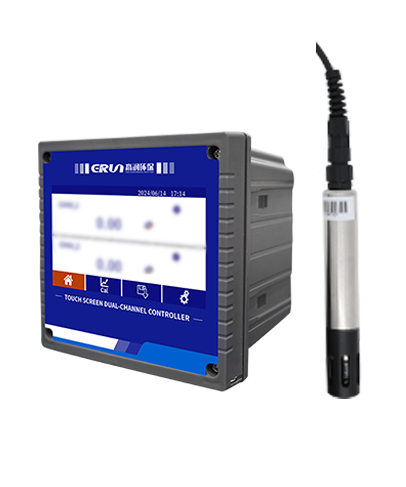

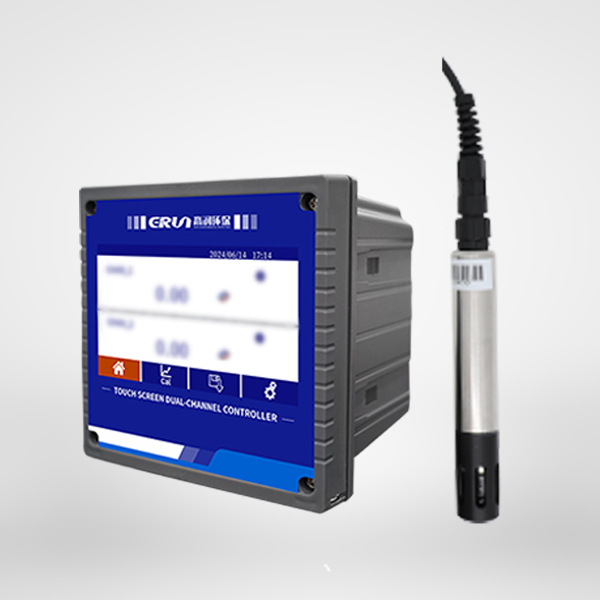

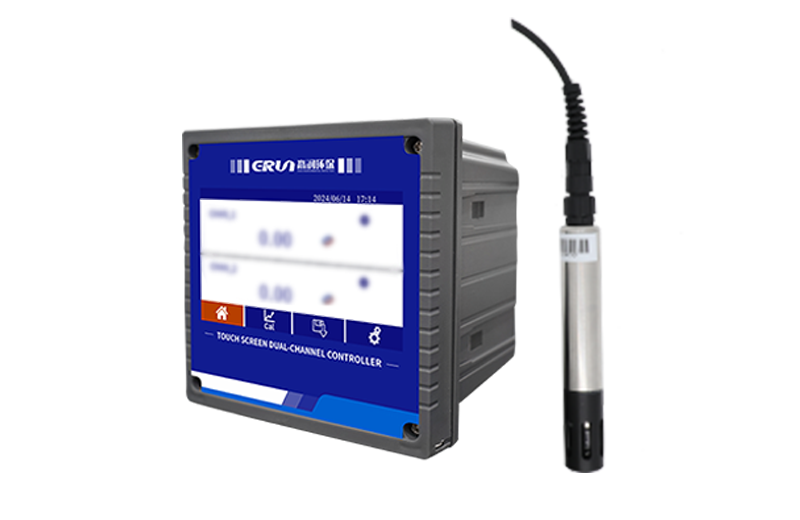

Online Dissolved Oxygen (DO) Water Quality Monitor
Model：ERUN-SZ2-B-A5
Parameter: Dissolved oxygen (DO)
Adopting new generation fluorescent lifetime technology, high performance fluorescent materials are developed by WinRun environmental protection master. No oxygen consumption, no flow rate limitation, no electrolyte required, maintenance and calibration free, excellent stability. Built-in temperature sensor, automatic temperature compensation, RS485 output, can be networked without controller. Widely used in sewage treatment, aquaculture and other industries water quality dissolved oxygen monitoring.

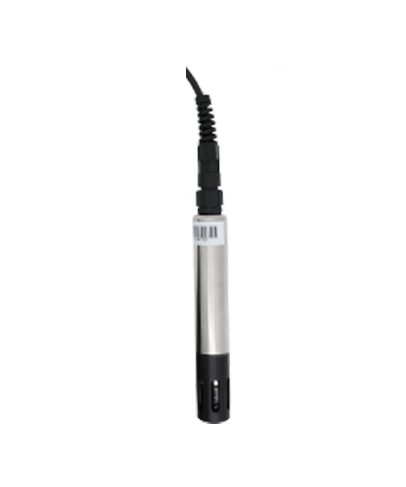

transducers | ERUN-A5A | ERUN- A5B | ERUN-A5C |
Measurement range | 0-20mg/L, or 0-200% saturated oxygen | ||
accuracy | ±3% | ±1% or 0.3mg/L | |
temperature range | 0~50℃ | ||
protection class | IP68 | ||
sensor interface | RS-485，MODBUS protocol | ||
calibrations | One or two point calibration | ||
Cable Length | Standard 10m, customizable | ||
Maximum water depth | 30m | 60m | Based on customization |
power supply | DC9~24V，Current >50mA | ||
sizes | Φ22mm*152.7mm | Φ26mm*187mm | Φ26mm*175mm |
Housing Material | 316L/Titanium Alloy | aluminum alloy | 316L |

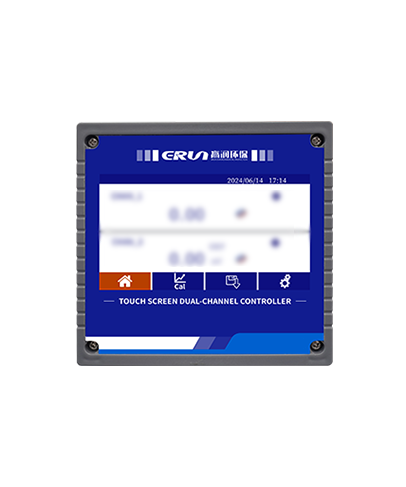

demonstrate | 7-inch color touch screen |
power supply | 110-220V AC |
exports | 1 circuit RS485, 2 circuits 4-20mA |
relay (electronics) | 2 relays, programmable response type and response value |
communication protocols | Standard Modbus RS485 RTU communication for real-time transmission of measured values |
material | ABS shell |
protection class | IP54 |
Storage temperature | -20~70℃ |
operating temperature | -15℃~60℃ |
sizes | 151.44mm*144.5mm*117mm |
Installation | Wall or panel mounting (opening size 138*138mm) |
weights | 0.8kg |
Data storage | Continuous storage > 2 years |
Built-in temperature sensor with automatic temperature compensation; |
No electrolyte required, strong anti-interference, no need for frequent calibrationNo oxygen consumption, no flow rate limitation; |
Digital sensor, RS485 output, MODBUS protocol; |
Built-in calibration parameters, factory calibrated accurately, ready to install and use. |
No oxygen consumption, no flow rate limitation |
Automatically prompts error and alarm messages, and realizes alarm signal uploading; |
Support 4-20mA, MODBUS RS485 and other data transmission methods; |
With time display, data storage and export function, to master the monitoring parameters change dynamics; |
Adopting 7-inch color touch screen, the operation interface is simple, easy for users to learn, reliable system and low maintenance; |
Wall mounting, panel mounting, etc. are possible |
