Online Water Intelligence Tracer
Monitoring of water pollution status, drinking water safety, agricultural irrigation, aquaculture environment, marine environment, etc.
Online Water Intelligence Tracer
Online Water Intelligence Tracer
Online Water Intelligence Tracer
Online Water Intelligence Tracer
Online Water Intelligence Tracer
Online Water Intelligence Tracer
Introduction

Brand:Erun

Name:On-line Water Quality Wisdom Tracer

Model:ERUN-SZ4-A-N8

Parameter:Tracer(Fluorescence Method)

ERUN-SZ4-A-N8 On-line Water Quality Wisdom Tracer, a kind of scientific instrument used for detecting the specific constituents or pollutants in the water body. It is based on advanced sensing technology and analysis methods. Through intelligent monitoring and data analysis technology, this device is able to monitor various water quality indicators in water bodies in real time, providing scientific basis and technical support for water quality protection, pollution prevention and control and ecological management. It is applied in many scenarios, such as monitoring the pollution status of water bodies, evaluating the effect of water treatment, guaranteeing the safety of drinking water, guiding agricultural irrigation, optimising the aquaculture environment and monitoring the marine environment.

Parameters

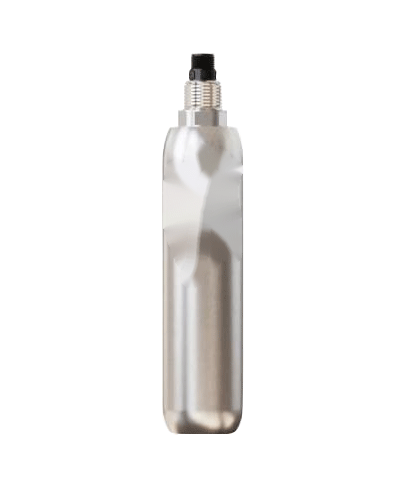

ERUN-SZ4-A-N8 On-line Water Quality Intelligence Tracer Sensor Technical Parameters:

Measurement range0-200ppb;0-500ppb, 0-1000ppb
Accuracy±0.25ppb or ±5%FS
Resolution0.01ppb
Temperature range0~60℃
Protection classIP68
Signal output4-20mA,RS485(MODBUS)
Pressure resistance range0 - 3bar
Electricity supplyDC12~24V, current≥1A
Medium flow rate>0.02m/s
connection threadG3/4
Shell materialstainless steels
Signal cable lengthstainless steels
Calibration methodZero calibration, high point calibration

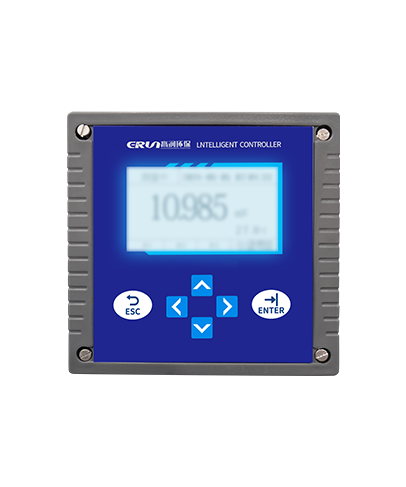

ERUN-SZ4-A-N8 On-line Water Quality Intelligent Tracer Controller Technical Parameters:

demonstrate

LED liquid crystal display

Automatic temperature compensation

0~60℃

signal output

0~20mA(load resistance<750Ω)

4~20mA(load resistance<750Ω)

Power supply

85~265VAC±10%,50±1Hz,power≤3W;

9~36VDC,power≤3W

communication output

RS485 Modbus RTU

environmental temperature

-10℃~60℃

relative humidity

Not more than 90 per cent

sizes

144mm*144mm*130mm

Installation

Recessed (Opening size 138*138mm)

weights

0.5kg

Features

ERUN-SZ4-A-N8 Online Water Quality Intelligent Tracer Controller Functional Features:

Adopt LED LCD display, intelligent Chinese/English menu operation;
High-resistance preamplifier: high input impedance, anti-noise, strong anti-interference ability;
Output signal: software selects 0-20mA or 4-20mA output;
Self-set password: Users can set or change their own passwords to avoid misuse by uninvolved personnel.

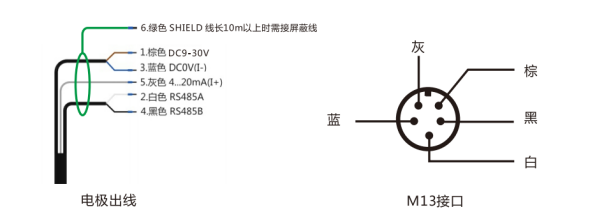

ERUN-SZ4-A-N8 on-line water quality wise tracer electrode wiring schematic:
