Brand：Erun

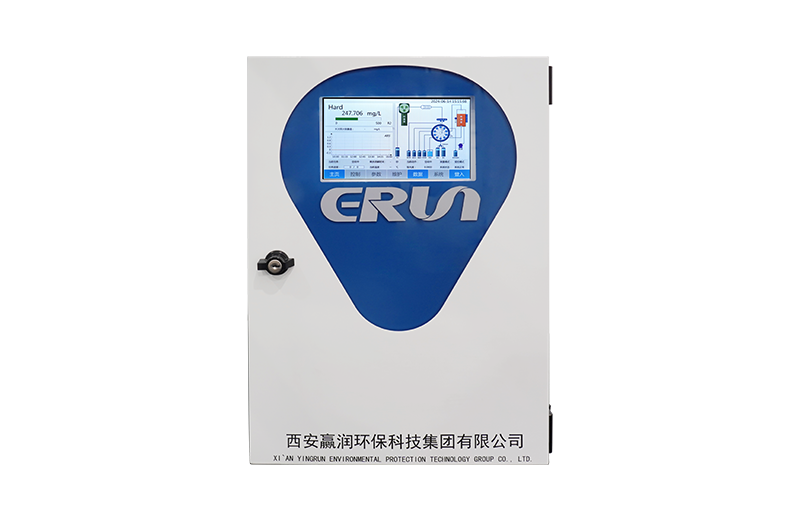

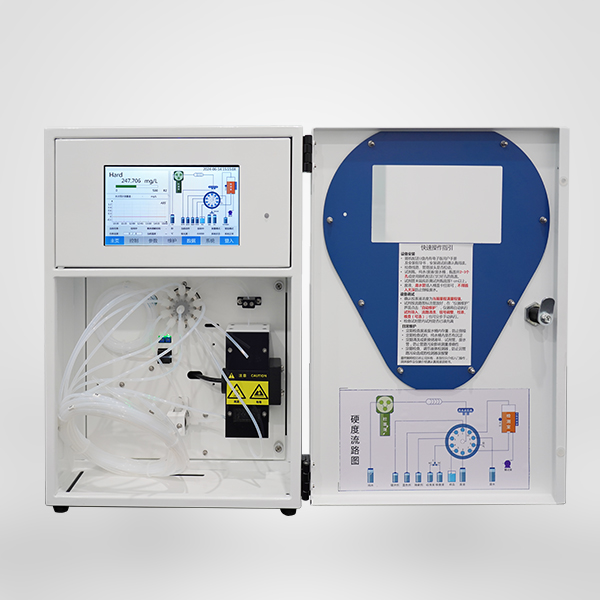

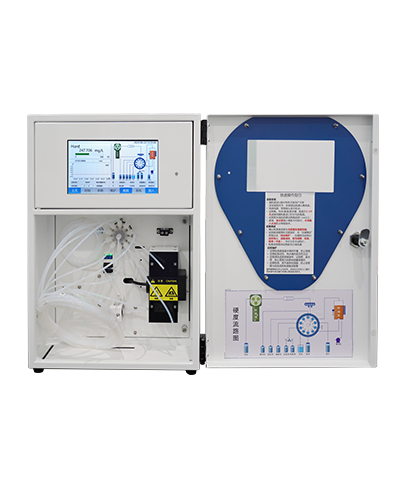

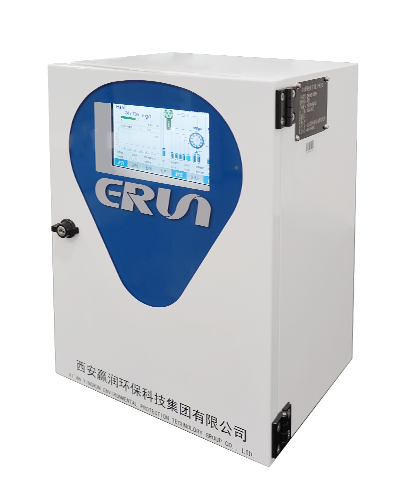

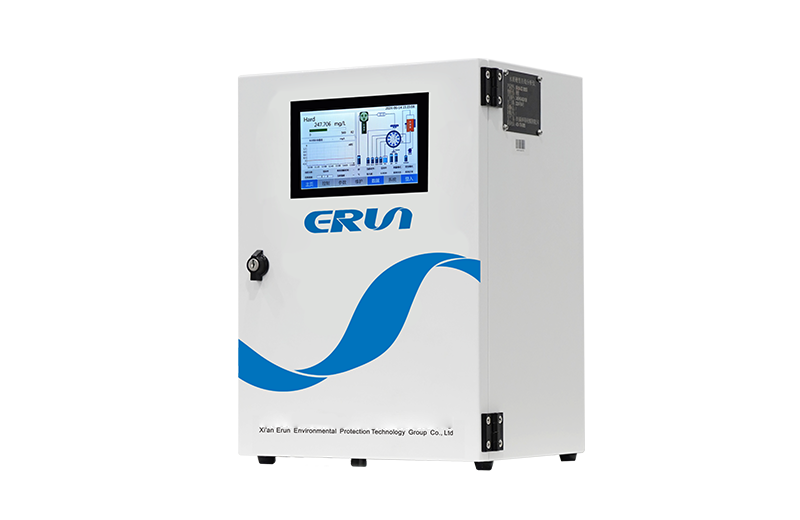

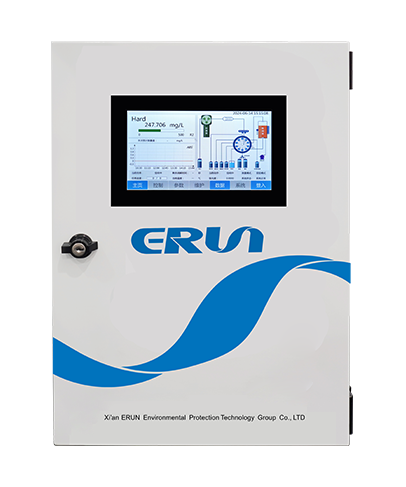

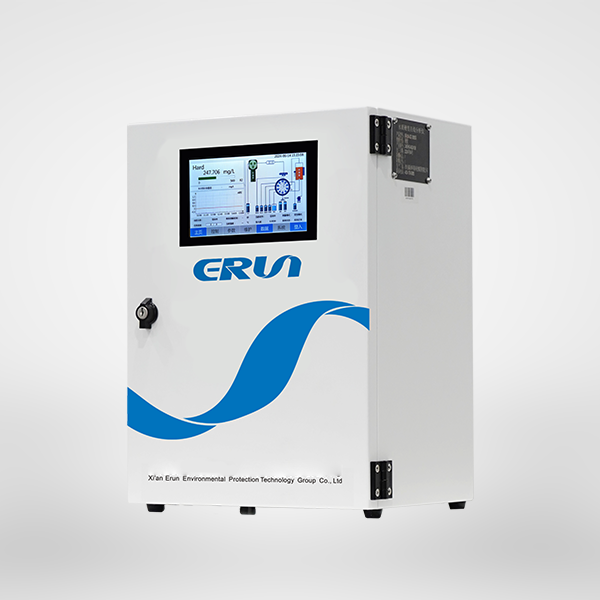

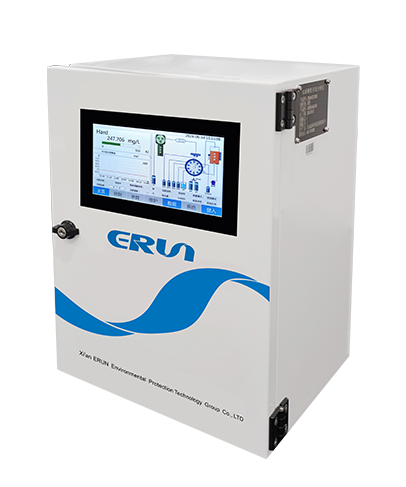

Name：Water Alkalinity Online Analyzer
Model：ERUN-SZ3-B3
Alkalinity (acid-base titration)
ERUN-SZ3-B3 water alkalinity online analyzer developed and produced by Erun Environmental Protection adopts the acid-base titration method of detection and is widely used in real-time monitoring of total alkalinity ions in the fields of boiler water, drinking water, industrial water treatment, aquaculture, environmental monitoring and agricultural irrigation water quality analysis.
Measurement range | (0～200/500/1000) mg/L; can be customized according to customer requirements |
displayed value error | ±10% |
lower limit of quantification | ≤1 mg/L |
repeatable | ≤3% |
zero drift | ≤3% |
range drift | ≤3% |
Minimum Maintenance Cycle | ≥168 h/次 |
digital communication | RS232、RS485、RJ45 |
analog communication | (4~20)mA input; (4~20)mA output |
environmental temperature | （5~40）℃ |
Instrument Size | 300mm x 420mm x 240mm (W x H x D) (main unit) |
Instrument weight | ＜15kg |
1. Small reagent consumption: the total reagent consumption of single measurement is less than 2mL, low maintenance cost.
2. Separation of waste liquid and waste water: the amount of waste liquid is less than 10mL and the amount of waste water is less than 15mL in a single measurement.
3. Plunger pump dosing: no contact with reagents, samples, waste liquid and waste water, reliable and durable.
4. Dual optical path detection: real-time calculation of absorbance, eliminating the external environment on the optical system interference.
5. Shortage of liquid detection alarm: automatically identify water samples with insufficient reagent supply to avoid measurement without reagents.
6. Support USB, TF card: program upgrade, data reading is convenient, data storage can be expanded.
7. Key parameter uploading: Based on the protocol requirements, key parameters are automatically uploaded to assist judgment.
8. Support IPv4 network: compatible with IPv6 network, meet the TCP/IP protocol communication requirements.
9.7-inch color touch screen, the application is based on Linux open source system.
