ERUN-SZ1S-A-C4

Water Chlorine ions om-line Analyzer

Used for continuous monitoring and control of chloride ion content in aqueous solutions in drinking water treatment plants, tank farms, drinking water distribution networks, water quality treatment projects, etc.

Introduction Parameters Features

Introduction

Brand：Erun

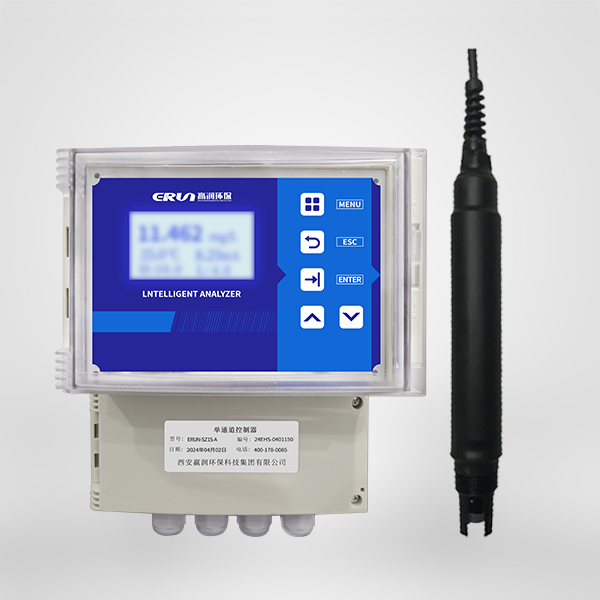

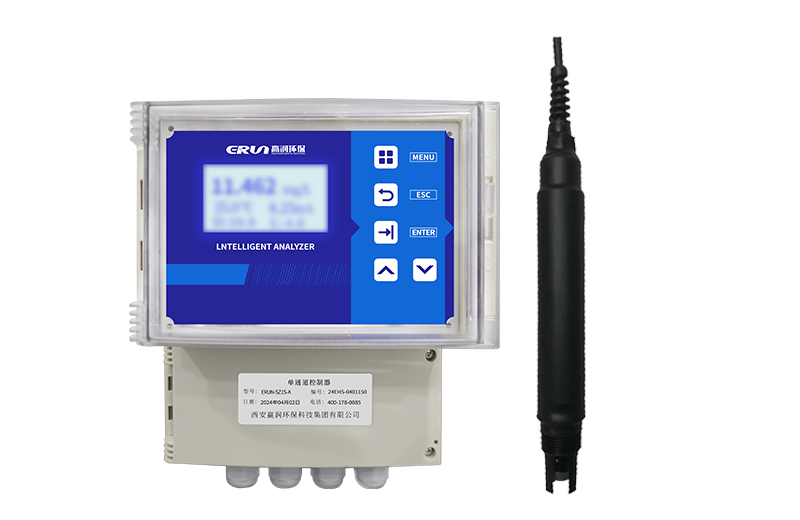

Water Chlorine ions om-line Analyzer

Model：ERUN-SZ1S-A-C4

Chloride ion (electrode method)

Chloride ion on-line analyzer adopts advanced chlorine ion selective electrode method (ISE method) imported from the United States, with high sensitivity, rapid signal response, accurate measurement, stable performance and simple maintenance.The measurement and control system is characterized by ease of use, high accuracy and economy. The use of this series of advanced analytical techniques ensures the stable reliability and accuracy of the instrument's long-term operation. It has Chinese menu type operation, 485 communication and other functions.

Parameters

Water quality online hardness analyzer ERUN-SZ1S-A-B2 controller technical parameters:

Gauge Size:	218183126mm
Power supply:	AC220V，DC24V
relays：	2 or 4 groups of relays, divided into high and low point alarm control Load AC220V/3A
Analog output:	1-channel or 2-channel 4～20mA (4-wire), maximum load 750Ω
Digital Interface:	1Road or 2 RS485 (ModBus protocol)
Protection Rating:	IP65

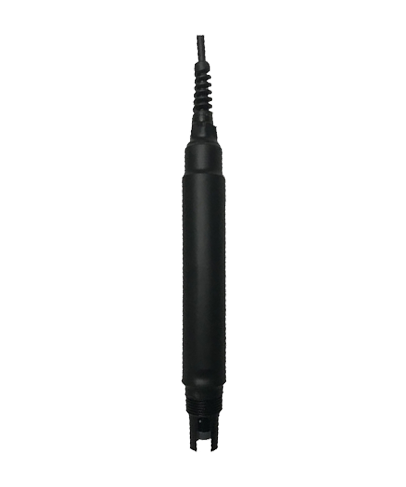

Water quality online chloride ion analyzer sensor technical parameters:

Measurement range:	Chloride ion: 0-2000 mg/L (ppm)，0-60℃
Resolution:	0.01mg/L；0.1℃
Accuracy:	±5%FS
Temperature compensation:	0-60℃ PT1000

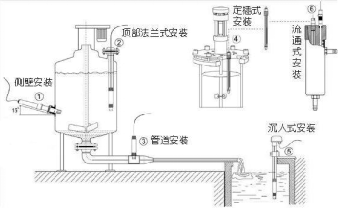

Water quality on-line chlorine ion meter sensor size and installation schematic diagram:

Installation Method Schematic

Features

Water Chloride Ion Online Analyzer ERUN-SZ1S-A-C4 Controller Product Features:

Large dot-matrix liquid crystal display, Chinese menu operation.	Factory settings can be restored.
Watchdog function: ensure that the meter will not die.	Automatic/manual temperature compensation function.
Power-down protection > 10 years.	The detection value can be set for incremental compensation.
Multi-parameter simultaneous display: Detection value, temperature, output current, alarm point, etc. are displayed at the same time, intuitive and easy to read.
