Brand: Erun

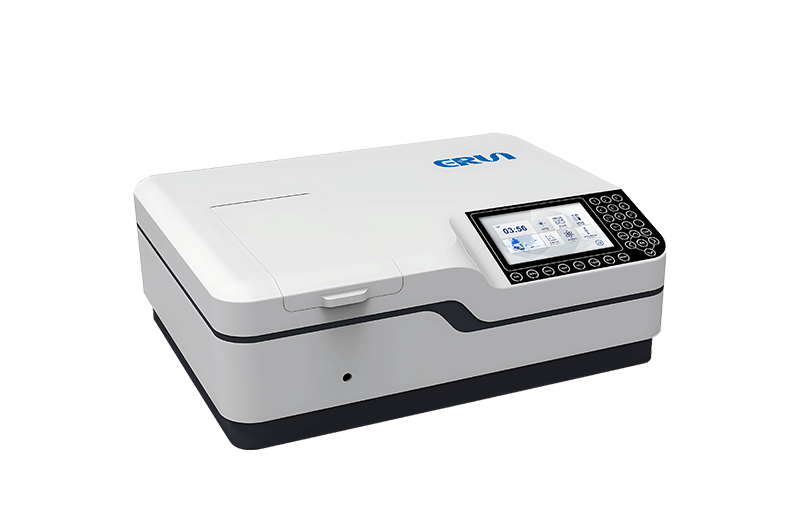

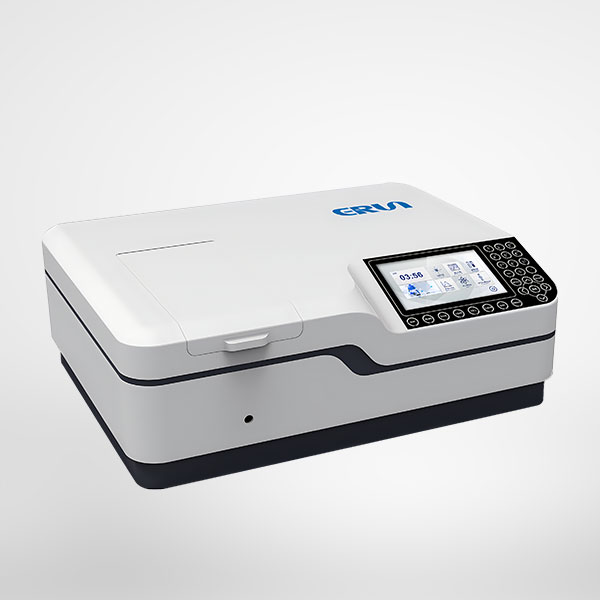

UV-Vis Spectrophotometer Measuring Instrument
Model:ERUN-STL-3200
Mode: Automatic
Erun ERUN-STL-3200 UV-visible spectrophotometer measuring instrument, this instrument uses pulsed xenon lamp as a light source, the instrument normal use at least 7 years, no need to replace the light source.We adopt original optical, circuit and structure design, advanced process specification and strict quality management system, microcomputer control and data processing, large screen color display, graphical interface operation and humanized menu prompts.
Technical Parameters | ERUN-STL-3200 |
monitor (computer) | 7-inch 1024 x 768 high-resolution color LCD screen |
optical system | Dual beam, built-in reference detector |
light source | flashing xenon lamp |
detector | silicon photodiode |
Spectral bandwidth | 1nm or 2nm selectable |
wavelength range | 190-1100nm |
wavelength accuracy | ±0.3nm |
Wavelength Repeatability | 0.1nm |
wavelength resolution | 0.1nm |
stray light | ≤0.05% T at 220 nm, 360 nm |
photometric accuracy | ±0.3%T |
Luminosity method | Transmittance/absorbance/concentration/energy |
analysis software | be in favor of |
1、Fast and convenient, the instrument is ready to use, no need to warm up.The instrument utilizes a pulsed xenon lamp as the light source. The pulsed xenon lamp with 1 billion flashes will last for 7 years. |
2、7-inch TFT large-screen true-color LCD display, Omron light-touch buttons, large screen display directly shows various scanning curves and graphs. |
3、Support U disk storage, convenient for users to use, the user measured data can be exported directly to the U disk, can support excel, txt format, picture format, can be output in four formats: *.csv, *.qua. *.tet, *.bmp. |
4、Data output: Equipped with RS-232C serial port (print), USB drive (online), USB HOST (connect to USB flash disk), 32GB memory as standard. |
5、The first in the industry to use the advanced 32-bit Cortex_M3 processor, the main frequency of 120M, the instrument can store 5000 test data or 500 working curves. |
| 6、Suspended optical system design, reinforced and thickened aluminum base plate design, eliminating the impact of vibration or deformation on the optical system; double-layer design, completely separating each circuit part of the optical path. |
| 7、The instrument adopts the national patent photoelectric signal detection device to make the instrument signal-to-noise ratio lower and the instrument more stable. |
8、Chinese and English dual system mode for customer convenience |
| 9、Optional with rotary use of the patented 8-connected automatic cuvette holder, which ensures that the light is perfectly centered when passing through the cuvette, improving the performance of the instrument. |
