Brand: Erun
Name: Benchtop Water COD Analyser
Model: ERUN-ST3-J5
COD (sealed catalytic digestion)

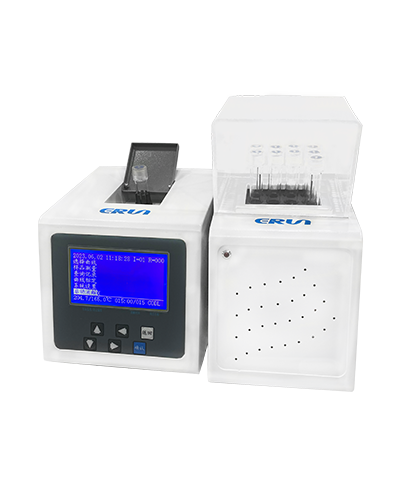

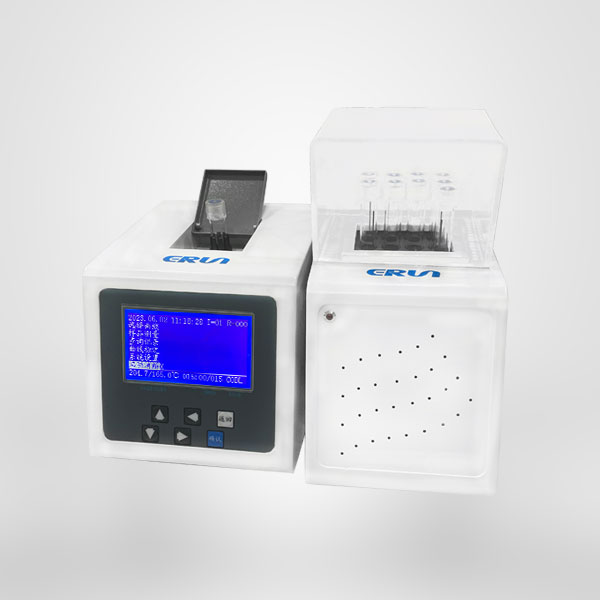

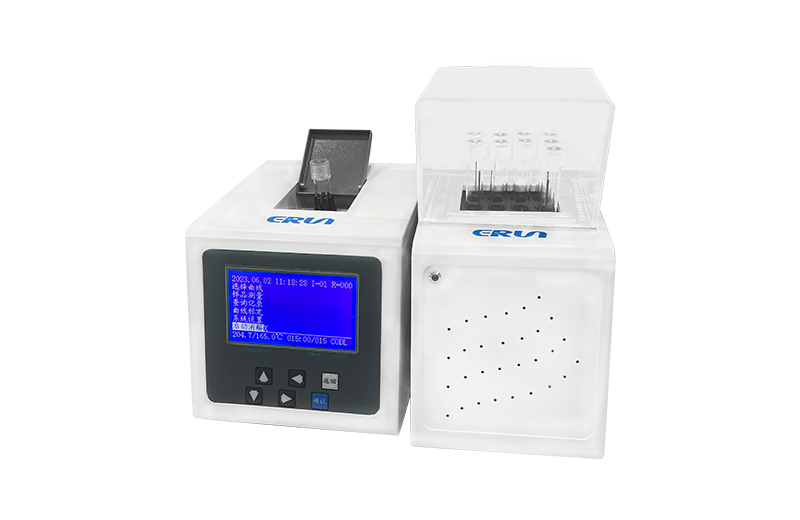

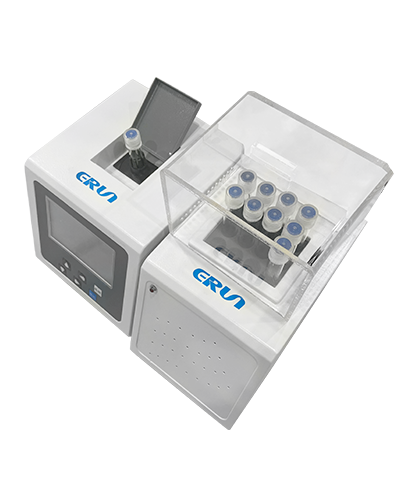

ERUN-ST3-J5 Benchtop COD Analyser, which is produced by Erun, uses sealed catalytic digestion followed by colourimetric measurement.The instrument adopts advanced cold light source, narrow band interference technology and microcomputer automatic data processing, directly displaying the COD (mg/L) value of the sample.The instrument is widely used in environmental monitoring, sewage treatment, and colleges and universities, scientific research units and other departments.
1. Measurement range: | 5～2000mg/L（Over-dilution determination） |
2. Display value error: | ≤±5 % |
3. Repeatability: | ≤3% |
4. Resistant to chlorine interference: | ≤1200mg/L |
5. Temperature control system: | Room temperature~180℃ can be set, the digestion temperature is 165℃. |
6. Temperature control accuracy: | ±0.5℃ |
7. Temperature control time: | 1~999min adjustable |
8. Elimination time: | 15min |
9. Optical stability: | The absorbance value of the instrument drifts less than 0.002A within 20min. |
10. Batch size: | 20 water samples |
11. contour sizes： | Host: 240mm×205mm×170mm Eliminator:240mm×207mm×170mm |
12. Weight: | Main unit 3kg Eliminator 4kg |
13. Power consumption: | ＜500W |
14. Normal conditions of use: | ⑴ Ambient temperature:5～40℃ ⑵ Relative humidity: ≤85% ⑶ Power supply.AC(220±22)V；（50±0.5）Hz ⑷ No significant vibration and electromagnetic interference, avoid direct sunlight. |
1.Separation of the sizer and the ablator does not affect the stability of the optical system. |
2. The tester is a cold light source, narrow-band interference optical system with good optical stability. |
3. Better linearity with cuvette colourimetry. |
4. LCD large screen liquid crystal Chinese display, easy and intuitive operation. |
5. Eliminator temperature PID automatic temperature control and timing, high precision. |
6. Simple and time-saving operation, no need to change tubes for colourimetry. |
7. The digestion temperature and time can be set steplessly for other applications. |
8. It can save 10 standard curves and 500 measured values, and will not be lost in power failure. |
1 mainframe | resolution apparatus 1 | 20 tubes |
2 cuvettes | COD reagent 1 set | Elimination shield 1pc |
1 copy of instruction manual | 1 certificate of product conformity | 1 copy of warranty card |
