Brand: Erun

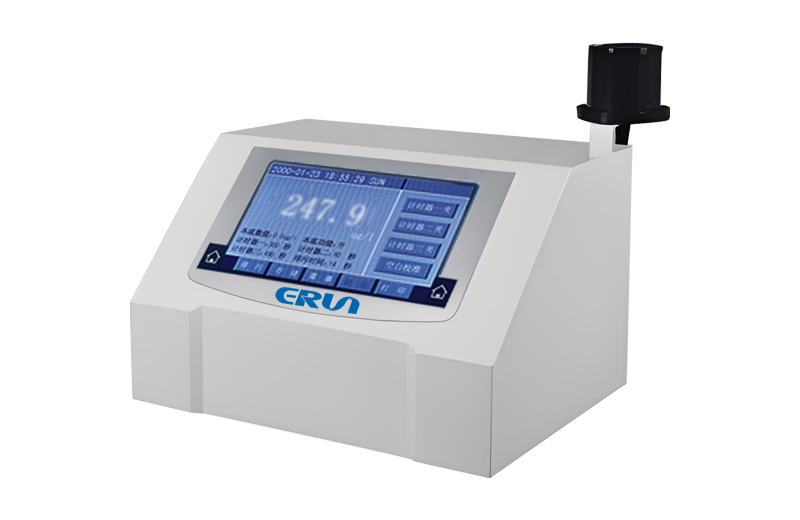

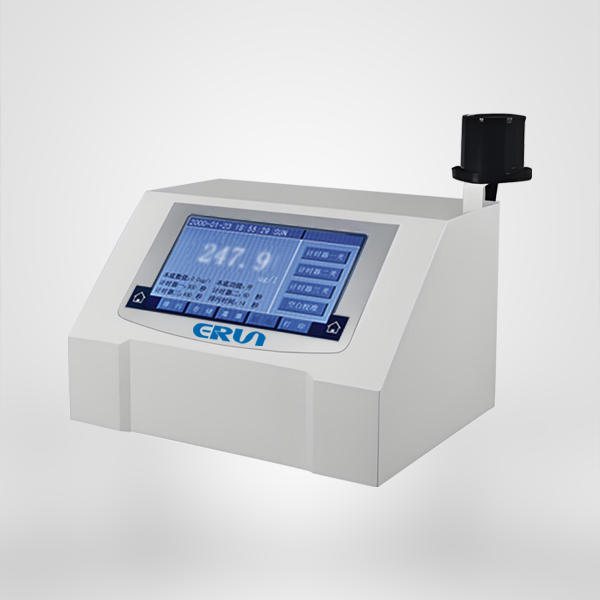

Trace Silicate Tester for Boiler Water in Thermal Power Plants
Model:ERUN-ST3-C5
Parameter: Trace Silicate
Erun environmental silicate analyser, based on GB/T12149-2017 "Determination of silicon in industrial circulating cooling water and boiler water".Widely used in power plants, chemical fertiliser, metallurgy, environmental protection, pharmaceutical, chemical fibre, semiconductor and other industries in the demineralised water, steam condensate, furnace water and other water soluble silica content analysis, detection.
demonstrate | 7.0 inch touch colour LCD, Chinese and English switchable display |
Measurement range | (0.0 to 200.0) μg/L or (0.0 to 2000) μg/L (optional) |
Precision | ±2.0%F.S |
Resolution | 0.1μg/L |
Repeatability | ≤1.0%F.S |
Stability | ±1%F.S/4h |
environmental temperature | (5～45)℃ |
Environmental humidity | ≤85%RH(non-condensing) |
Overall dimensions | 260mm×200mm×180mm |
Power supply | AC(85~265)V Frequency (45~65)Hz |
Power consumption | ≤30W |
weight | 3.2kg |
1、The light source adopts imported monochrome cold light source with excellent performance, stable signal, low power consumption and long life. |
2、Blank calibration to eliminate zero and electrical drift for improved measurement accuracy |
3、Background compensation function reduces trace silicon measurement errors. |
4、Automatic timing reminder function, convenient for operators to use, improve work efficiency |
5、Advanced SMD technology and integrated design, highly integrated circuit design is stable and durable. |
6、Advanced microcontroller technology, high performance, low power consumption |
7、Cyclic data storage, automatic clearing of overflow, simple operation, convenient query, power-off data storage time of more than 10 years |
