Brand: Erun

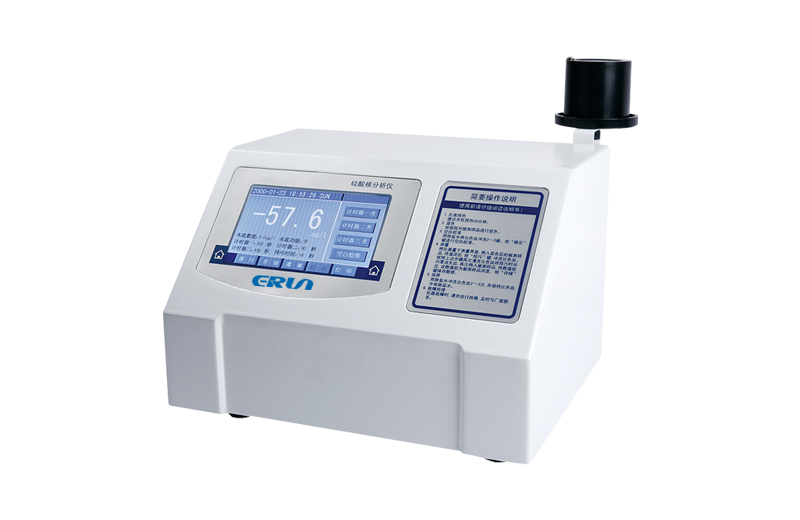

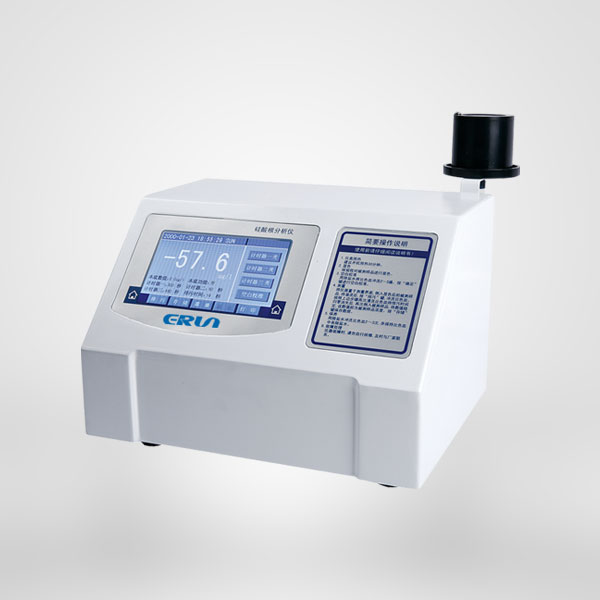

Thermal power plant boiler water trace copper (Cu) content analyser
Model:ERUN-ST3-H6
Parameters: Trace cooper
Thermal power plant boiler water trace copper (Cu) content analyser is based on the industry standard DL/T 502.14-2006 (the use of bis-cyclohexanone oxaldihydrazone spectrophotometric method for the determination of copper) carefully developed.It has a wide range of applications covering thermal power, chemical fertiliser production, metallurgical industry, environmental protection, pharmaceutical industry, biochemistry, food processing and water supply.The analyser is designed for the analysis and determination of copper in a wide range of water samples including, but not limited to, boiler feedwater, condensate, steam water, cooling water from internally cooled generators, furnace water and natural water.
demonstrate | 5.0 inch touch colour LCD, Chinese and English switchable display |
Measurement range | (0.0～200.0)μg/L |
Precision | ±3.0%F.S |
Resolution | 0.1μg/L |
Repeatability | ≤1.0%F.S |
Stability | ±1.5%F.S/4h |
environmental temperature | (5～45)℃ |
Environmental humidity | ≤85% RH (non-condensing) |
Overall dimensions | 260mm×200mm×180mm |
Power supply | AC(85~265)V Frequency (45~65)Hz |
Power consumption | ≤30W |
weight | 3.2kg |
1、The light source adopts imported monochrome cold light source with excellent performance, stable signal, low power consumption and long life. |
2、Blank calibration to eliminate zero and electrical drift for improved measurement accuracy |
3、5.0 inch touch colour LCD, Chinese and English switching display, easy to operate |
4、Automatic timing reminder function, convenient for operators to use and improve work efficiency |
5、Advanced SMD technology and integrated design, highly integrated circuit design is stable and durable. |
6、Advanced microcontroller technology, high performance, low power consumption |
7、Cyclic data storage, automatic clearing of overflow, simple operation, convenient query, power-off data storage time of more than 10 years |
