Brand：Erun

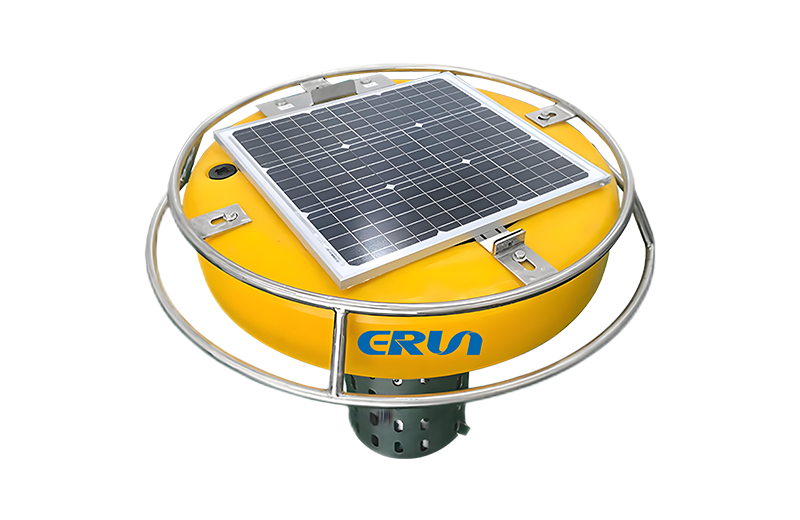

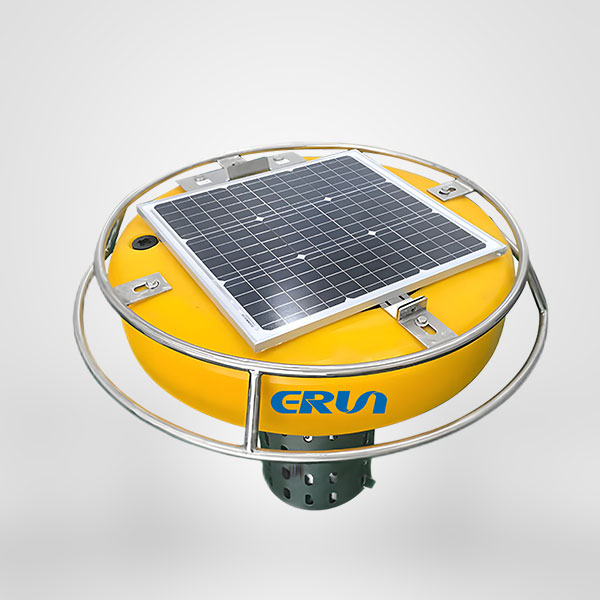

On-line analyser of water quality for small buoys
Model：ERUN-SZ3-FB109S
Parameter: Buoy
ERUN-SZ3-FB109S small buoy system is specially developed for surface water monitoring field, adopting low centre of gravity design, PE shell, EVA filling, and embedded screw fixing, which makes the buoy operation more stable and reliable.With a diameter of only 80cm and a weight of only 40KG, it can be manually placed without lifting, and is suitable for online water quality monitoring in urban rivers and lakes.
The buoy is powered by solar energy and can choose GPRS, 3G, 4G or NB-IOT for data remote transmission, and the data support PC or mobile phone APP remote access.Can be equipped with low-power intelligent water quality sensors, optional multi-parameter water quality sensor (7 parameters), UV254 COD and ammonia nitrogen, the sensor has a self-cleaning brush, no need for frequent maintenance, suitable for long-term online monitoring.
name of product | Technical indicators |
Buoy Material | PE shell, EVA filling, 316L stainless steel |
transducers | Optional multi-parameter sensors (support up to 7 parameters, optional 6 probes, e.g. optical DO, 4-electrode conductivity, turbidity, chlorophyll, blue-green algae, PH and ORP), UV254 COD sensor, NH-4 ammonia nitrogen sensor |
Power supply specifications | Solar panel 45W, battery 12V 54AH |
sizes | 73cm x φ80cm (including outer steel ring φ92cm) |
wireless transmission | Support GPRS, 3G, 4G or NB-IOT optional |
software platform | Remote transmission to designated cloud platforms or select platform-related services |
1、Low centre of gravity design, more stable and reliable; | |
2、Lightweight and compact, no need to lift to complete the drop; | |
3、Multiple parameters can be selected to support fluorescence DO, four electrode conductivity, fibre optic turbidity, chlorophyll, blue-green algae, pH, ORP, NH4-N ammonia, UV COD or oil in water Sensors come with self-cleaning brushes, eliminating the need for frequent maintenance; | |
4、Optional GPRS, 3G, 4G or NB-IOT for data teleportation. |
