Brand：Erun

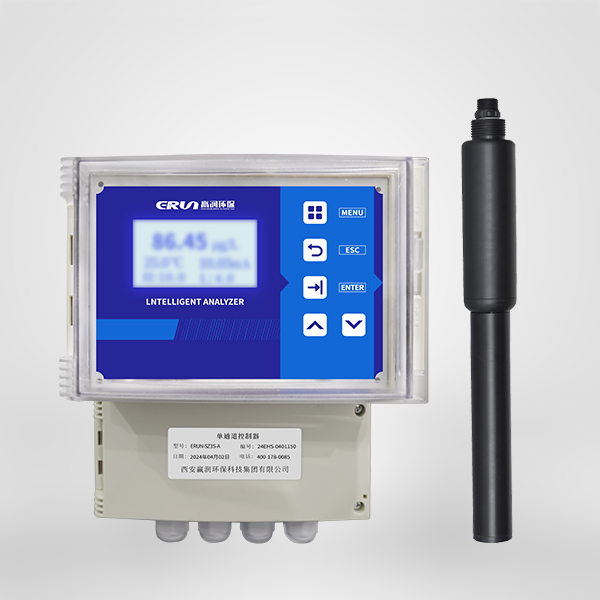

Water quality chlorophyll blue-green algae online monitor
Model：ERUN-SZ1S-A-2
methodologies：Chlorophyll/blue chlorophyll
Water quality chlorophyll blue-green algae online monitor, is a high precision, real-time monitoring of water quality conditions of high-tech equipment.It adopts advanced optical sensing technology, which can accurately measure the content of chlorophyll and blue-green algae in the water body, reflecting the degree of eutrophication of the water body in time.Compact design, easy to operate, support remote monitoring and data analysis, to help users achieve rapid response to changes in water quality and scientific management.It is widely used in lakes, rivers, reservoirs and aquaculture, providing strong support for water resources protection and ecological environment monitoring.
Gauge Size: | 218*183*126mm |
Power supply: | AC220V，DC24V |
relays： | 2 or 4 groups of relays, divided into high and low point alarm control Load AC220V/3A |
Analog output: | 1-channel or 2-channel 4～20mA (4-wire), maximum load 750Ω |
Digital Interface: | 1Road or 2 RS485 (ModBus protocol) |
Protection Rating: | IP65 |
Measurement range: | chlorophyll：0~400ug/L or 0~100RFU Cyanobacteria (blue-green algae)：0~280000cells/mL |
Detection limit: | Chlorophyll:0.1ug/L Chl Blue-green algae:1cells/mL |
Operating Temperature: | 0~50℃ |
Protection Rating: | IP68 |
Large dot-matrix liquid crystal display, Chinese menu operation. | Factory settings can be restored. |
Watchdog function: ensure that the meter will not die. | Automatic/manual temperature compensation function. |
Power-down protection > 10 years. | The detection value can be set for incremental compensation. |
Multi-parameter simultaneous display: Detection value, temperature, output current, alarm point, etc. are displayed at the same time, intuitive and easy to read. | |
