Brand：Erun

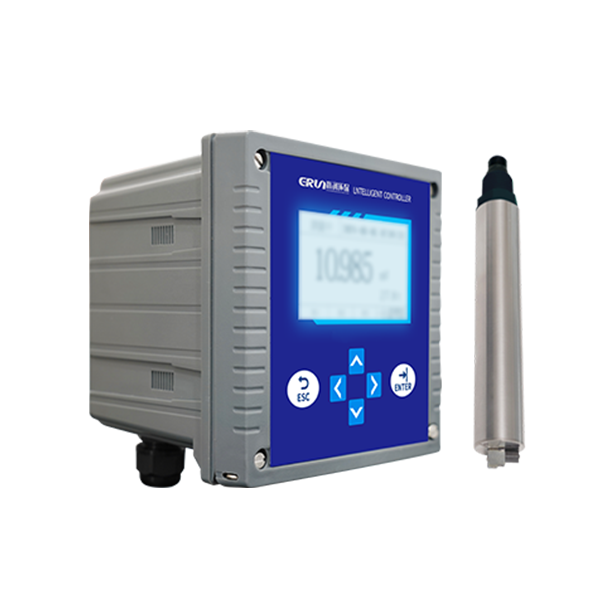

On-line analyser for trace dissolved oxygen in water quality
Model：ERUN-SZ4-A-A5
Parameter：dissolved oxygen（DO）
ERUN- SZ4-A-A5 water quality trace dissolved oxygen on-line analyser industrial dissolved oxygen analyser adopts fluorescence extraction principle is a new generation of intelligent on-line analyser developed by our company.The electrodes use an optical construction principle for precise measurement and easy maintenance.It is suitable for continuous real-time monitoring of trace dissolved oxygen (ppb level) in water quality such as industrial boiler water and water vapour quality in thermal power plants.
range | 0-20μg/L（ppb） |
Measurement accuracy | ±1％ F.S |
repetitive | ±0.5％ F.S |
resolution | 0.01μg/L |
stability | ±0.5％ F.S/24h |
operating temperature | 0-50℃ |
Temperature Accuracy | ±1℃ |
Temperature Repeatability | ±0.5℃ |
Working Atmospheric Pressure | 40-115kPa |
Maximum pressure | 1000kPa |
Storage temperature | -20-70℃ |
demonstrate | LEDliquid crystal display |
Automatic temperature compensation | 0－100℃ |
signal output | Maximum Load 500Ω, Accuracy ±1% |
power consumption | 20VA |
Alarm accuracy | ±0.2％ F.S |
Alarm Relay Contact capacity | DC28V（5A） ； AC250V（1A） |
sizes | 160mm*160mm*170mm |
Installation | Recessed (Opening size 138*138mm) |
weights | 3kg |
Built-in automatic pressure and salinity compensation; | Large dot-matrix, high-resolution, backlit LCD display; |
Multi-parameter simultaneous display, display the measured liquid dissolved oxygen, temperature, status, fault indication and time. | Customisable English |
Built-in electronic encryption key to avoid misuse by unrelated personnel | Isolated 4-20mA output current signals for arbitrary expansion |
Automatic range switching | Industrial controlled watchdog to ensure proper instrument operation |
Alarm signal display and relay contact output | Error signal display and Chinese character indication of misoperation |
Automatic range switching for optimum accuracy | With power failure protection function: in case of power failure or shutdown, the data set internally will still be valid. |
Provide historical curve data query | Two selectable measurement modes to meet different measurement occasions |
