Brand: Erun

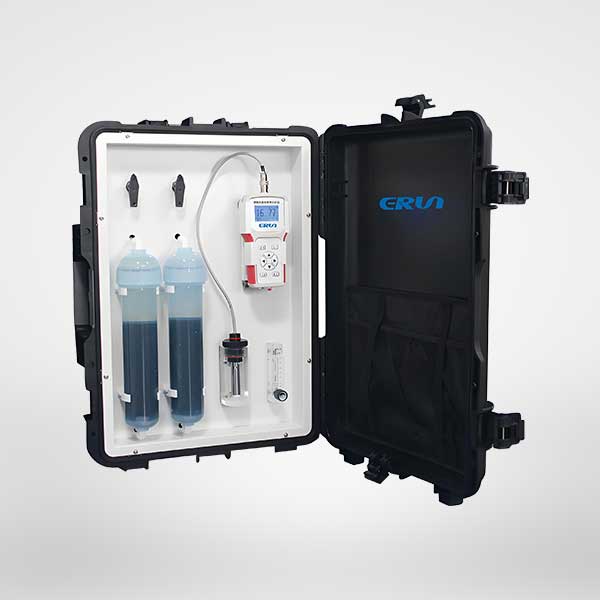

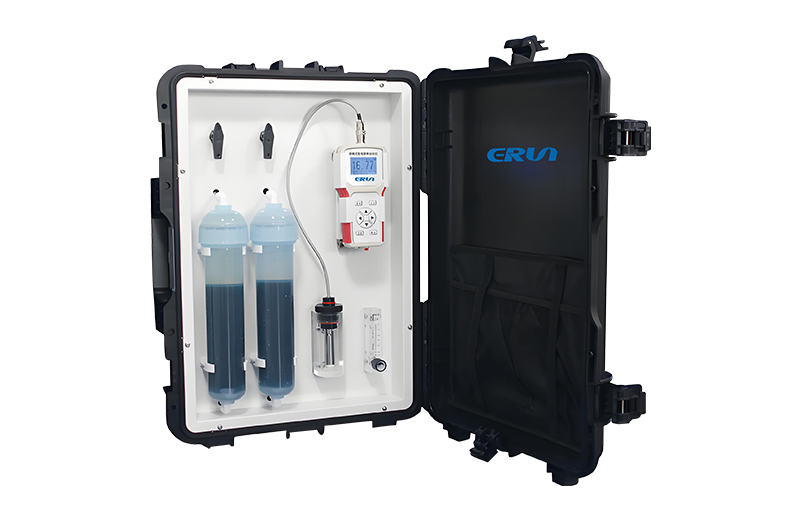

Portable hydrogen conductivity analyser for thermal power plants
Model: ERUN-SP3-A4
Parameter: Hydrogen conductivity
ERUN-SP3-A4 Portable Hydrogen Conductivity Analyser developed and manufactured by Erun Group is specially designed for thermal power plants. The instrument is suitable for solution conductivity testing in many industries,This includes, but is not limited to, the thermal power, chemical fertiliser, metallurgy, environmental protection, pharmaceutical, biochemical and food industries.It provides a convenient and accurate measurement method to meet the needs of different fields for accurate measurement of solution conductivity values.
demonstrate | 128 x 64 dot matrix LCD, Chinese display |
Measurement range | K=0.01cm-1（0.000～2.000） μS/cm 和（0.00～20.00） μS/cm |
accuracy | ±2.5% F ·S |
resolution | 0.001 μS/cm |
repetitive | ≤1% |
temperature sensor | Pt1000 |
Warming range | （0～60）℃ |
water temperature | （5～60）℃ |
water flow | 0.3L～0.5L/min |
work pressure | ≤0.3MPa |
environmental temperature | (5～45)℃ |
Environmental humidity | ≤85% RH (non-condensing) |
Overall dimensions | 610mm×440mm×250mm |
Power supply | AC (220±2)V Frequency (50±5)Hz |
power | ≤0.5W |
weights | 15kg |
1. Adopting advanced single-chip technology to ensure high performance and low energy consumption of the equipment. |
2. With dual range function, and can automatically switch the range to adapt to different measurement needs. |
3. Equipped with double ion exchange column design, effectively extend the service life of the instrument. |
4. Supports multiple parameters displayed on the same screen, including conductivity, temperature and time, and can automatically convert the conductivity value under the current temperature to the value under the standard conditions of 25℃, especially suitable for the accurate measurement of a variety of water quality in power plants. |
5. The use of hydrogen-based colour-changing resins, which prompt replacement when close to failure, ensures a stable and reliable measurement process that is easy to use and does not contaminate the water. |
6. High-capacity battery design supports up to 8 hours of continuous measurement on a single full charge. |
7. Built-in data cycle storage function can automatically delete the expired data, provide convenient data query service, and at the same time ensure that the data storage period after power failure is more than 10 years. |
8. Integrated box structure design, with excellent sealing performance, improve the measurement accuracy, make the operation more convenient. |
9. Measures not only hydrogen conductivity but also conventional conductivity. |
10. With its own flow meter, it is convenient for users to precisely control the flow rate during the measurement process. |
