Brand:ERUN

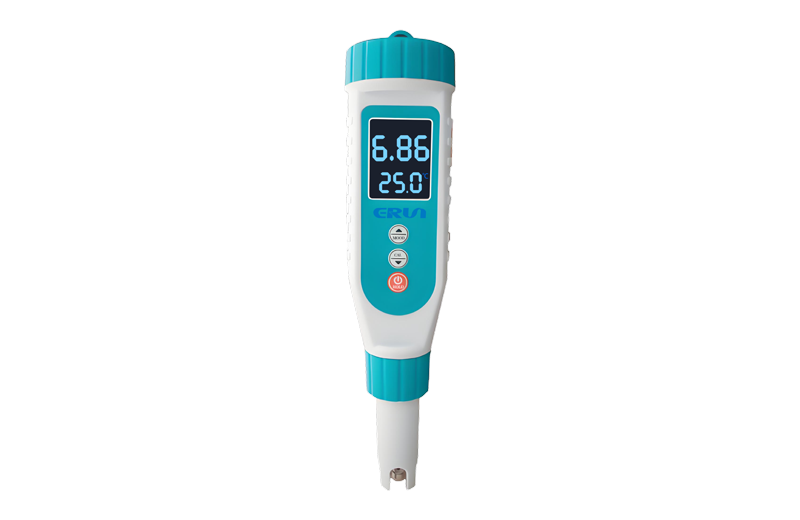

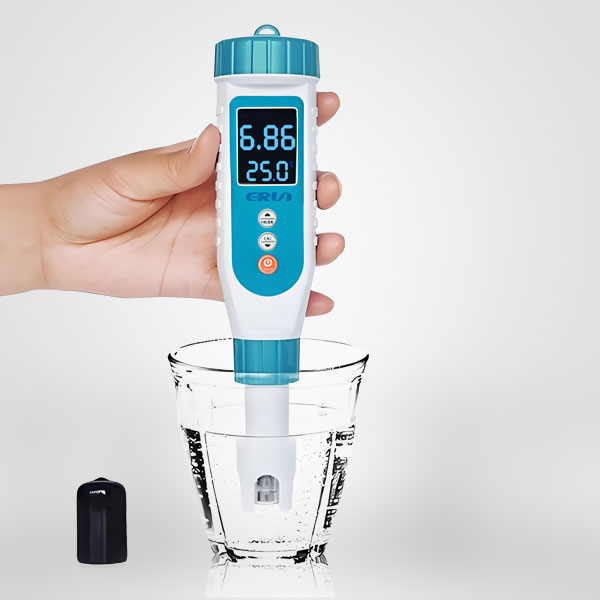

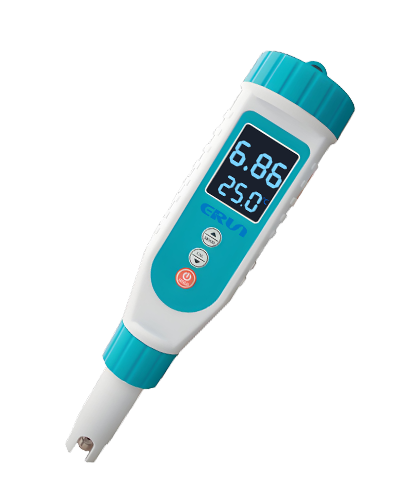

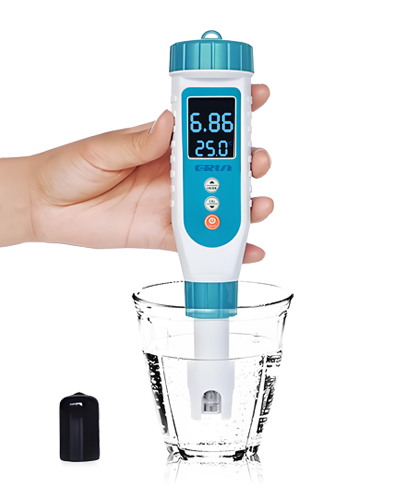

Title:Pen ORP meter
Model: ERUN-SQ-DE5
Parameter: ORP
ERUN-SQ-DE5 pen-type ORP meter is a high-precision, portable redox potential detection instrument, itle. 32-bit high-performance processor, with LED segment code LCD, synchronous display of ORP value and temperature value (resolution of 1mV/0.1 ℃), accuracy of ± 2mV/± 0.3 ℃.Support numerical value and temperature calibration, built-in NTC 10K temperature compensation function, adapting to the environment of 0 ~ 60 ℃. IP65 protection level of dustproof and waterproof, with LR44 button battery, the theoretical standby time of more than 1 year, the weight of only 111g, compact and portable.Equipped with automatic shutdown, low battery reminder and automatic recognition of standard liquid to ensure efficient and reliable operation.The product is suitable for petroleum, chemical, municipal, environmental protection and other fields, for water quality analysis to provide accurate data support.
Detection range | -999mV～999mV，Temperature: 0～60℃ |
resolution | 1mV，0.1℃ |
accuracy | ±2mV，±0.3℃ |
Automatic temperature compensation | 0～60℃ temperature supplement: NTC 10K |
working conditions | Ambient temperature is 0～60℃, relative humidity≤90%. |
operating voltage | LR44×4 button cell 6V |
sizes | Overall: 204mm x 46mm; screen 20mm x 28mm |
weights | 111g |
1, LED segment code liquid crystal display (ORP value and temperature value) 2, numerical value calibration and temperature calibration function 3, using 32-bit high-performance processor, high stability, low power consumption 4、Automatic identification of standard liquid, standard liquid does not match can not complete the calibration 5, five minutes without key operation that is automatically shut down 6、Low battery reminder function 7, ultra-long standby technology, theoretical standby time of more than a year 8、Protection level: IP65 |
