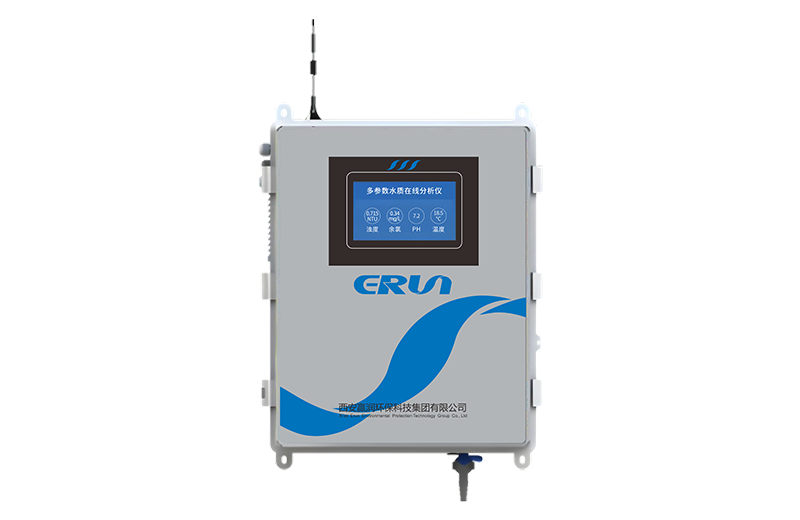

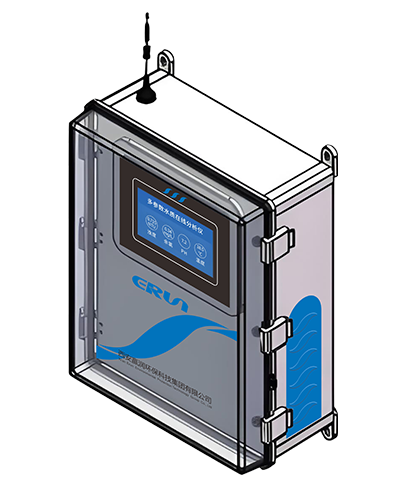

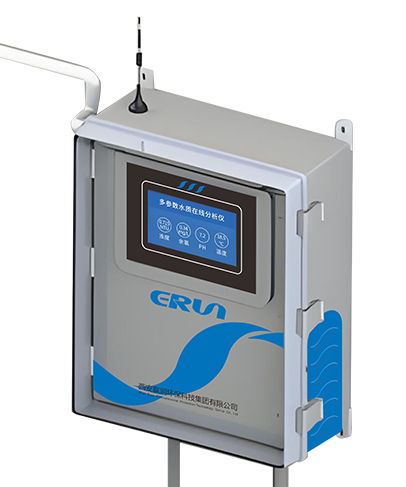

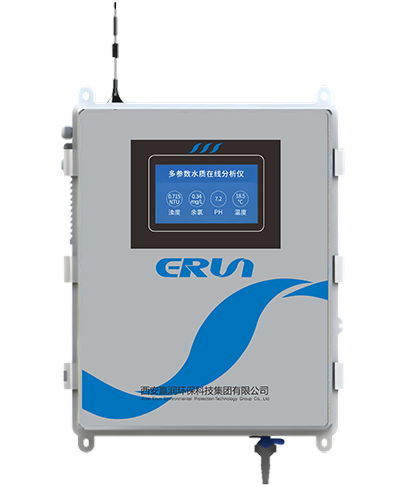

ERUN-WQS-6022 Drinking Water Quality Monitoring System is a new generation of drinking water quality monitoring equipment independently developed and manufactured by our company, which can be widely used for online monitoring of water quality in urban or village waterworks, water distribution networks, secondary water supply, end-users, indoor swimming pools, large-scale water purification equipment and drinking water, etc., and it is the best choice for the control of water production process in waterworks, water conservancy and water management, and the management of sanitary and hygiene services.It is an indispensable on-line analyzing equipment for water production process control, water conservancy and water management, health supervision and other fields.
Multi-parameter water quality online analyzer is the intelligent terminal equipment of the Internet of Things for drinking water safety, which can be directly connected to the "water quality cloud platform" and the "water quality cloud micro letter mobile terminal".
Detection parameters | Turbidity, disinfectant (residual chlorine/chlorine dioxide/ozone/total chlorine), pH, temperature, dissolved oxygen, ORP, conductivity, TDS |
range (of scales or measuring equipment) | Turbidity: 0~20NTU (default) with pressure turbidity, 0~100NTU, 0~2000NTU Disinfectant: 0~5mg/L (default), 0~20mg/L; pH: 0 to 14; Temperature: -5~60℃; Dissolved oxygen: 0~20mg/L; ORP：±2000mV； Conductivity: 0-20000uS/cm; TDS：0-10000mg/L |
resolution | Turbidity: 0.001 NTU; Disinfectant: 0.001mg/L; pH: 0.01; Temperature: 0.1°C; Dissolved Oxygen: 0.01mg/L; ORP：±1mV；Conductivity: 1uS/cm; TDS: 1mg/L |
accuracy | Turbidity: 0-100NTU2% or ±0.02NTU whichever is greater; 0-2000NTU 10% or ±0.5NTU whichever is greater; Disinfectant: ±5% or ±0.05mg/L whichever is greater; pH: ±0.1; Temperature: ±0.5℃; Dissolved oxygen: ±3% or ±0.2mg/L whichever is greater; ORP：±20mV； Conductivity/TDS: 1% F.S. |
operating temperature | -5℃ ~ 45℃ |
influent flow | 500~1000mL/min |
influent pressure | 0.6MPa |
data transmission | RS485 interface + 4G (web API) with optional 4-20mA module |
Display output | 7-inch touch screen |
power supply | 100~240V AC，50/60Hz |
Shell material | ABS material |
Product Size | 405mm*500mm*19mm （Non-standard, subject to actual configuration） |

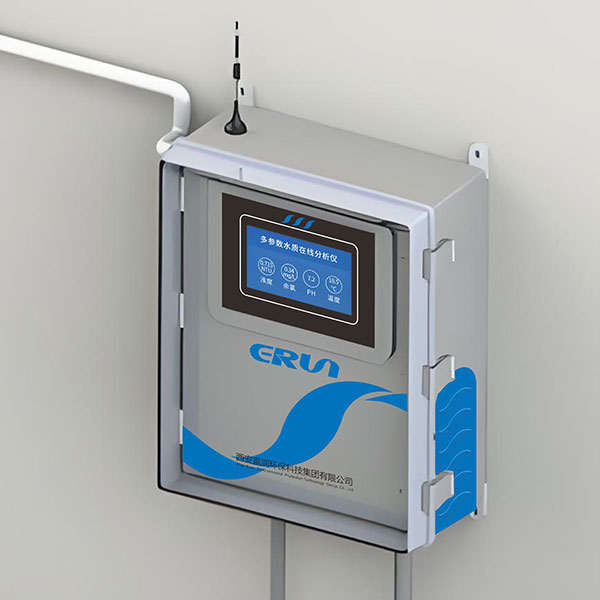

1, integration: integrated integrated design, with a unified inlet and outlet, centralized data display, wall-mounted installation, preventing flooding and ground moisture, and does not take up space on the ground, easy to install and operation and maintenance; 2、Parameters: Integrated design, simultaneously monitor turbidity, disinfectant (residual chlorine / chlorine dioxide (high purity) / ozone), pH, temperature, conductivity / TDS, ORP and other parameters; 3, high precision: in the tap water (0.1 ~ 1NTU) and pure water (0.001 ~ 0.1NTU) order of magnitude can be long-term stable and accurate measurement; 4, high reliability: sensors and instrumentation components are imported components, for water quality online analysis of internal more than a large number of optimization, high reliability; 5, easy to integrate: standard RS485 Modbus-RTU protocol and equipment wireless digital transmission channel, cloud platform to support third-party platform data access. |
