Brand：Erun
Name: Portable Chloride Ion Water Quality Tester
Model：ERUN-SP8-ASC-C4
Parameters: Chloride ion

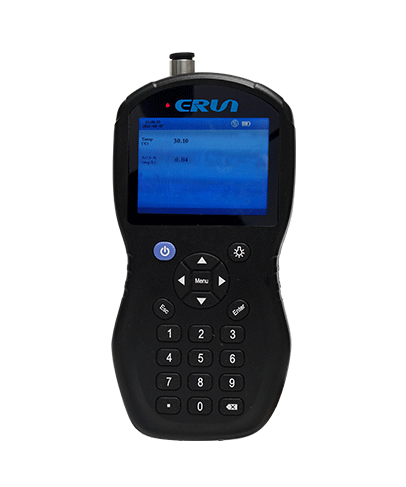

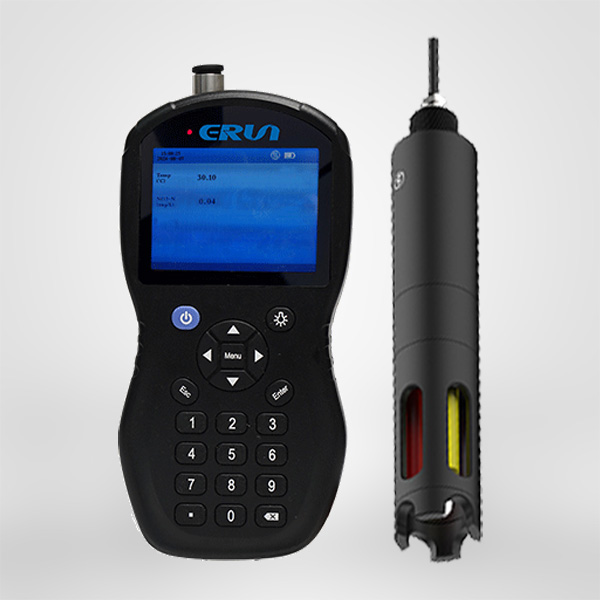

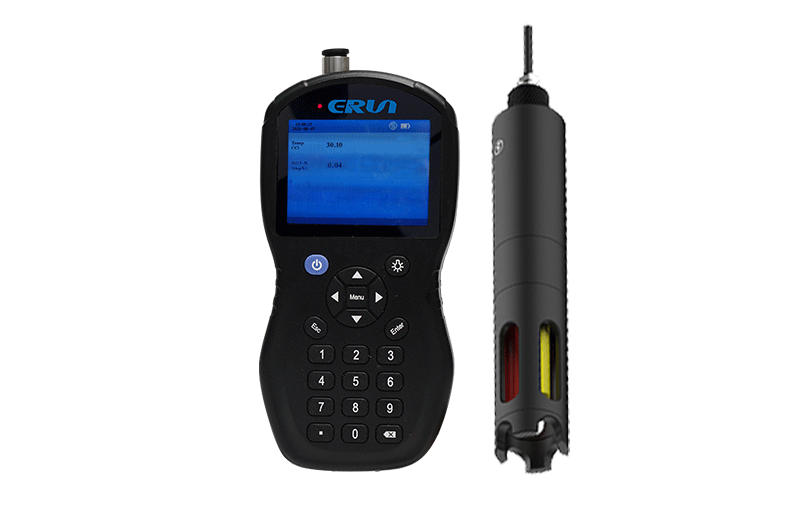

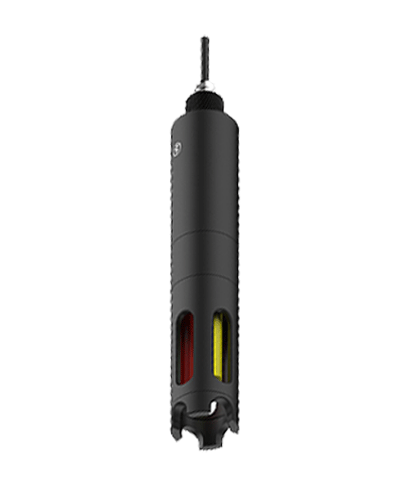

ERUN-SP8-ASC-C4 Portable Chloride Ion Analyzer produced by Erun consists of a portable host and a chlorine ion sensor (for electrode detection). Chlorine ions in the spectrum has absorption peaks and emission peaks of this characteristic, the emission of a specific wavelength of monochromatic light irradiation into the water, the water of chlorine ions to absorb the energy of the monochromatic light, releasing another wavelength of monochromatic light, chlorine ions emitted by the intensity of the light and the amount of chlorine ions in the water is directly proportional to the content of chlorine ions.
Measurement range | Chloride ion (CL-)：3～1000 mg/L |
resolution | 0.01mg/L |
Measurement accuracy | ±5% or ±0.2 mg/L of the measured value, whichever is greater. |
Mainframe material | Host shell: ABS+PC Chlorine ion sensor: SUS316L |
Storage temperature | -15~60℃ |
operating temperature | 0~50℃ |
Dimensions/Weight | Chlorine ion sensor size: 55mm diameter * 342mm length Weight: <1KG; Portable host size: 203*100*43mm, weight: 0.5KG; |
protection class | Portable main unit IP67, chlorine ion sensor IP68 |
Cable length | 3 meter cable as standard (can be extended) |
demonstrate | 3.5Inch color display screen with adjustable backlight |
data storage | Greater than 100,000 pieces of data |
1.The main unit is IP67 rated; |
2.The ergonomic curved design with rubberized non-slip hand strap provides a firm grip even in wet environments and is not easy to slip off; |
3.With data storage function, and data export can be realized through the USB interface; |
4.Built-in rechargeable battery and charging directly via USB, no need to remove the battery; |
5.The mainframe is equipped with an intelligent recognition function that automatically recognizes the connected sensors and automatically adapts to the reading interface to ensure the accuracy and intuition of data reading; |
6.Sensors can be parameterized and calibrated; |
