Brand: Erun

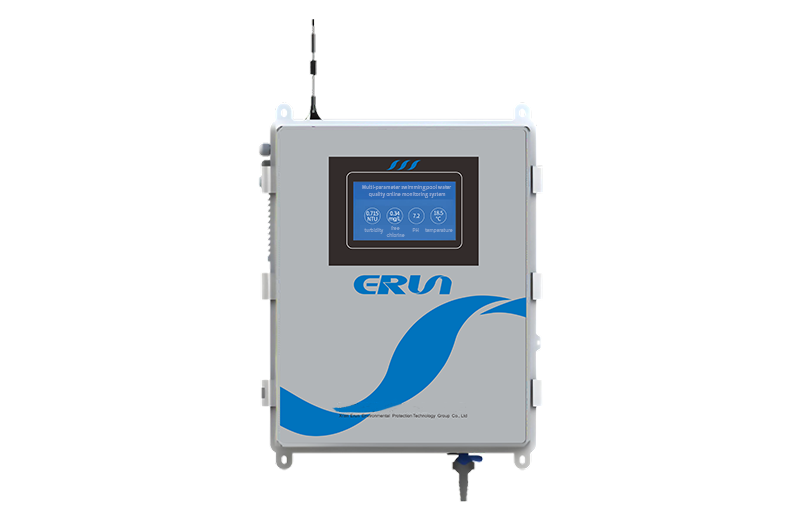

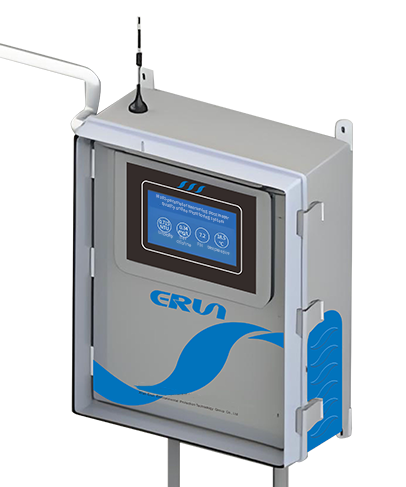

Multi-parameter swimming pool water quality online monitoring system
ERUN-WQS-6020
ERUN-WQS-6022 Living Drinking Water Quality Monitoring System is a multi-parameter swimming pool water quality online monitoring system independently developed and manufactured by our company, which can be widely used in indoor swimming pools, large-scale water purification equipment and water parks, hot springs and other online monitoring of water quality, and it is an indispensable on-line analyzing equipment for water conservancy and water management, sanitary supervision and so on.
Swimming pool water quality online analyzer monitoring parameters include turbidity, residual chlorine / chlorine dioxide / ozone / total chlorine, pH, temperature, conductivity / TDS, ORP, etc., parameters can be expanded. And the water quality analyzer can be directly connected to the "water quality cloud platform" and connected to the "water quality cloud micro letter mobile terminal".
Detection parameters | Turbidity, residual chlorine, ozone, pH, ORP, temperature |
range | Turbidity 0~20NTU (default) Turbidity with pressure; Residual chlorine: 0~5mg/L (default), 0~20mg/L optional Ozone: 0~5mg/L (default), 0~20mg/L selectable pH：0~14； Temperature -5~60℃; ORP±2000mV； |
resolution | Turbidity: 0.001NTU; Residual chlorine: 0.001mg/L; Ozone: 0.001mg/L ; pH: 0.01; Temperature: 0.1°C; ORP: ±1mV; |
accuracy | Turbidity: 0-100NTU 2% or ±0.02NTU whichever is greater; 0-2000NTU 10% or ±0.5NTU whichever is greater; Residual chlorine: ±5% or ±0.05mg/L, whichever is greater; Ozone: ±5% or ±0.05mg/L. pH: ±0.1; Temperature: ±0.5°C; ORP: ±20mV; |
operating temperature | -5℃ ~ 45℃ |
influent flow | 500~1000mL/min |
influent pressure | 0.6MPa |
data transmission | RS485 interface + 4G (web API) with optional 4-20mA module |
Display output | 7寸 touchscreens |
power supply | DC24V power supply |
Shell material | ABS material |
Product Size | 405mm*500mm*19mm(subject to actual configuration) |

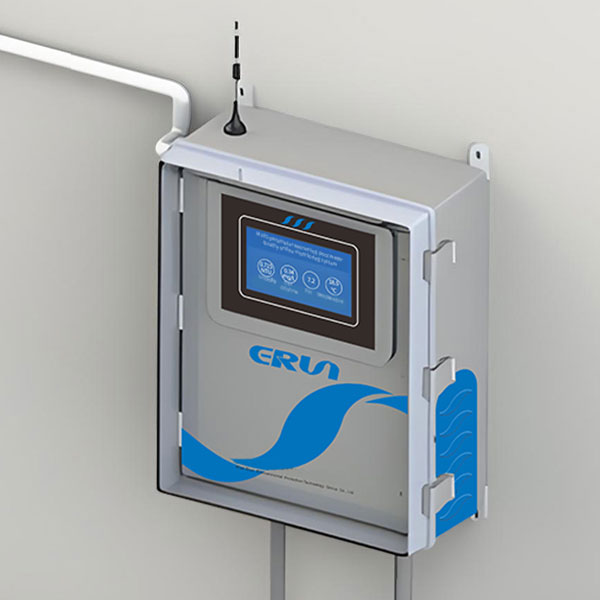

1, the equipment adopts integrated structure, equipped with unified inlet and outlet water interface and centralized data display, support wall-mounted installation, effectively preventing flooding and ground moisture invasion, space-saving, easy to site installation and routine maintenance. 2, the system integrates a variety of water quality testing functions, can simultaneously monitor turbidity, disinfectants (including residual chlorine, high purity chlorine dioxide, ozone), pH, temperature, conductivity / TDS and ORP and other key water quality indicators. 3, in the tap water (0.1 ~ 1 NTU) and pure water (0.001 ~ 0.1 NTU) range of long-term stability and accurate measurement performance, to meet the high standard of water quality monitoring needs. 4, the core sensors and instrumentation components selected high-quality imported components, and for online water quality analysis of a number of internal optimization design, to protect the stability and reliability of the equipment for long periods of operation. 5、Support standard RS485 Modbus-RTU communication protocol and wireless data transmission channel, the cloud platform provides an open interface to support third-party system access and data sharing, easy to build intelligent water quality monitoring network. |
