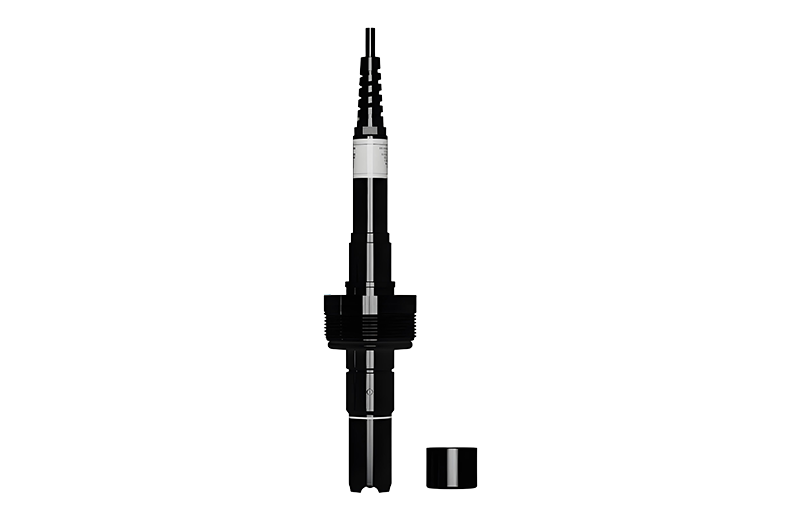

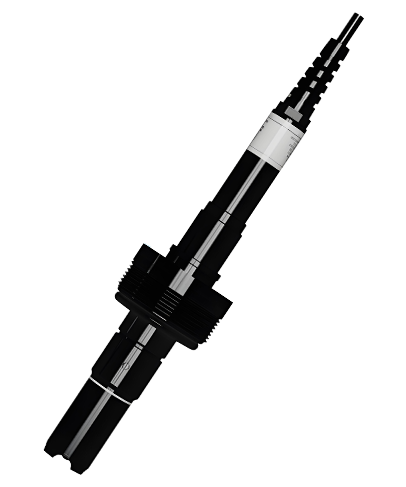

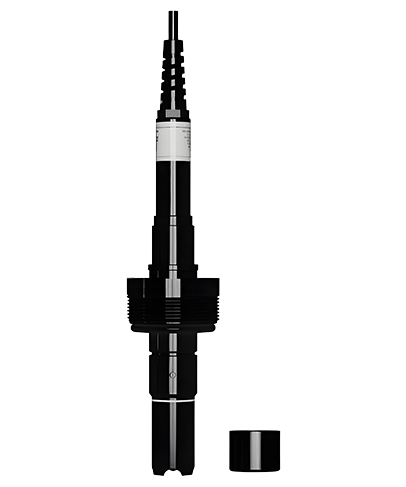

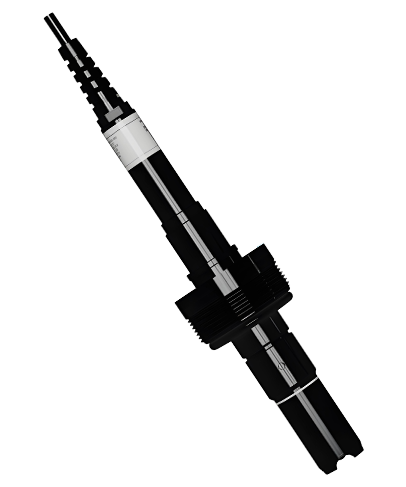

This product is a new type of online residual chlorine water quality sensor independently developed by ERUN Group. It features high stability and high precision, and can accurately measure the residual chlorine value and temperature value in the solution.It is widely used for continuous real-time monitoring of residual chlorine in drinking water, wastewater, boiler water, aquaculture, biological and pharmaceutical industries.
Measurement range | 0.00~20.00mg/L |
Measurement accuracy | ±2%FS |
Temperature measurement range | 0.0~60.0℃ |
Measurement principle | Constant Voltage |
Response time | 90%＜90S |
Medium flow rate | 15~30L/h |
Pressure range | 0~1bar |
PH value range | 5~9pH |
Housing Material | ABS |
Cable Length | Standard 5m |
Process Connection | M39*1.5 |
Electrical Connection | Pin-type |
Installation Method | Flow-through type (flow cell) |
Output | 4~20mA three-wire system |
Data Communication | RS485 |
| Power Supply | DC9~30V |
| IP Rating | IP68 |
