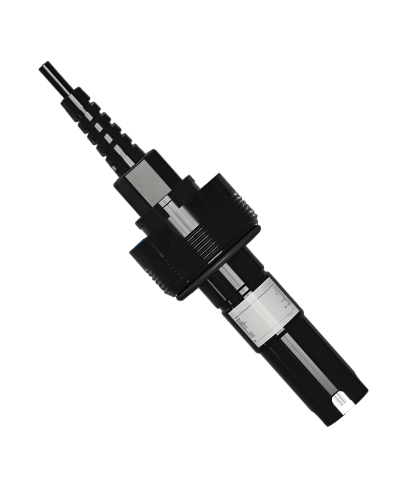

ERUN-A2B Online ORP Sensor (ABS Flow-through Type)

ERUN-A2B Online ORP Sensor (ABS Flow-through Type)
It is widely used for online monitoring of ORP values in solutions in fields such as:water treatment, tap water supply, wastewater treatment, aquaculture, surface water monitoring, and environmental engineering.
ERUN-A2B Online ORP Sensor (ABS Flow-through Type)
ERUN-A2B Online ORP Sensor (ABS Flow-through Type)
ERUN-A2B Online ORP Sensor (ABS Flow-through Type)
ERUN-A2B Online ORP Sensor (ABS Flow-through Type)
ERUN-A2B Online ORP Sensor (ABS Flow-through Type)
ERUN-A2B Online ORP Sensor (ABS Flow-through Type)
Introduction

This product is a new type of online ORP water quality sensor independently developed by ERUN Group.It features high stability and high precision, and can automatically detect temperature and perform automatic temperature compensation, accurately measuring the ORP value and temperature value of the solution.It is widely used for online monitoring of ORP values in solutions in fields such as:water treatment, tap water supply, wastewater treatment, aquaculture, surface water monitoring, and environmental engineering.

Parameters

Measuring Range

-2000mV~+2000mV

Accuracy

1mV

Resolution

2mV

Slope

≥96%

Temperature Measuring Range

0.0-60℃

Temperature Sensor

Pt1000 (optional: Pt100, NTC10K, NTC2.252K)

Liquid Junction

PTFE

Pressure Range

0-3bar

Housing Material

ABS

Membrane Resistance

500Ω

Process Connection

M39*1.5

Signal Cable Length

Standard 5-meter signal cable

Electrical Connection

Pin type or BNC interface

Installation Method

Flow-through type

IP Rating

IP68
