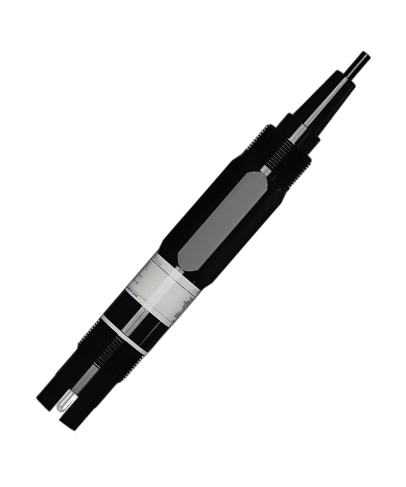

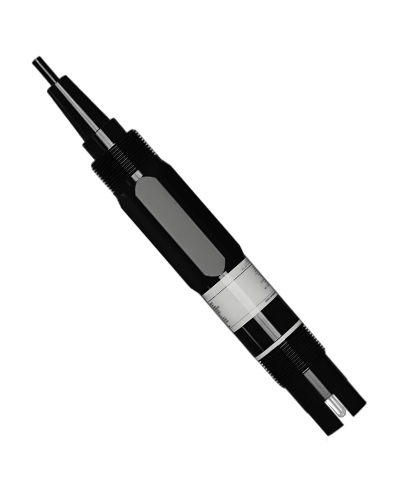

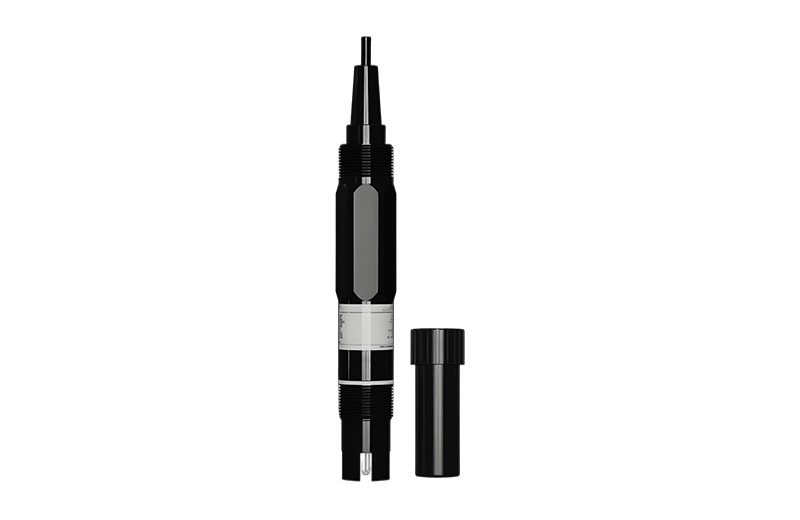

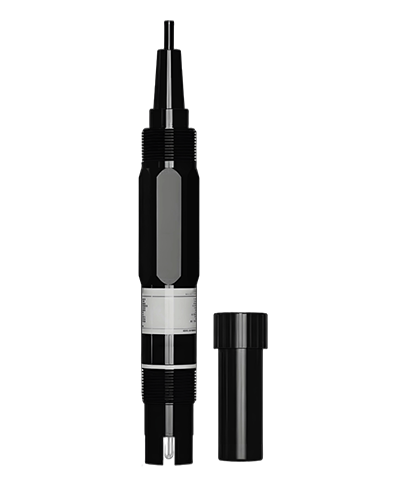

This product is a new type of online residual chlorine water quality sensor independently developed by ERUN Group. It features high stability and high precision, and can accurately measure the residual chlorine value and temperature value in the solution. It is widely used for continuous real-time monitoring of residual chlorine in drinking water, wastewater, boiler water, aquaculture, biological and pharmaceutical industries.
Measuring Range | -2000mV~+2000mV |
Accuracy | 1mV |
Resolution | 2mV |
Slope | ≥96% |
Temperature Measuring Range | 0.0-60℃ |
Temperature Sensor | Pt1000（optional:Pt100、NTC10K、NTC2.252K） |
Liquid Junction | PTFE |
Pressure Range | 0-3bar |
Housing Material | PPS |
Membrane Resistance | ＜500Ω |
Process Connection | G3/4 |
Signal Cable Length | Standard 5-meter signal cable |
Electrical Connection | Pin type or BNC interface |
Installation Method | immersion type |
IP Rating | IP68 |
