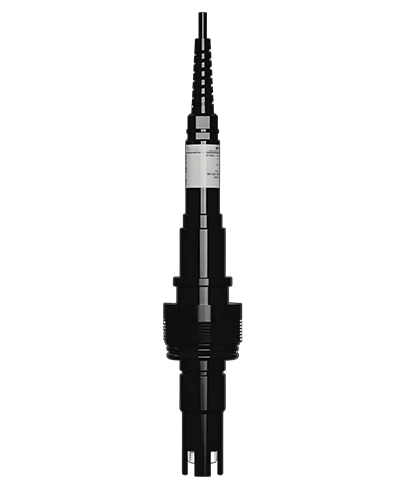

ERUN-C3B Online Chloride Ion Sensor (Flow-through Type)
It is widely used for continuous real-time monitoring of chloride ions in drinking water, wastewater, boiler water, aquaculture, and the biological and pharmaceutical industry
ERUN-C3B Online Chloride Ion Sensor (Flow-through Type)
ERUN-C3B Online Chloride Ion Sensor (Flow-through Type)
ERUN-C3B Online Chloride Ion Sensor (Flow-through Type)
ERUN-C3B Online Chloride Ion Sensor (Flow-through Type)
ERUN-C3B Online Chloride Ion Sensor (Flow-through Type)
ERUN-C3B Online Chloride Ion Sensor (Flow-through Type)
Introduction

This product is a new type of online chloride ion water quality sensor independently developed by ERUN Group.It features high stability and high precision. It can automatically detect temperature and perform automatic temperature compensation, accurately measuring the chloride ion concentration and temperature of the solution.It is widely used for continuous real-time monitoring of chloride ions in drinking water, wastewater, boiler water, aquaculture, and the biological and pharmaceutical industry.



Parameters

Measuring Range

1.8~35500ppm

pH Measuring Range

2~12pH

Accuracy

±5%FS

Resolution

0.001ppm

Temperature Measuring Range

0~50.0℃

Sensor Type

Solid-state membrane

Repeatability

±3%

Pressure

0~1bar

Housing Material

ABS

Cable Length

Standard 5m

Process Connection

M39*1.5

Installation Method

Flow-through

Output

4~20 mA three-wire system

Data Communication

RS485

Power Supply

DC9~30V

IP Rating

IP68
