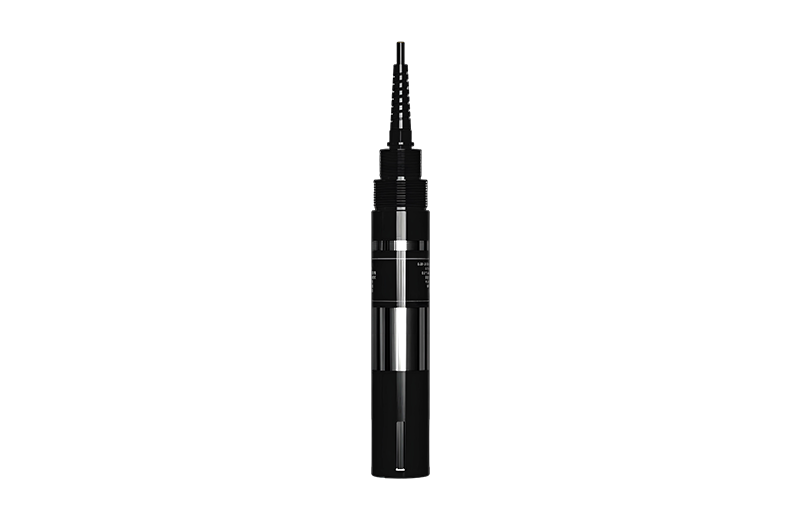

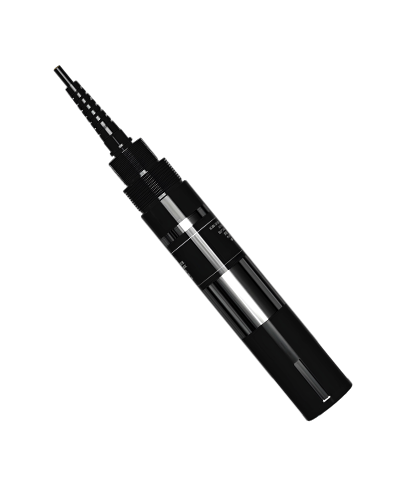

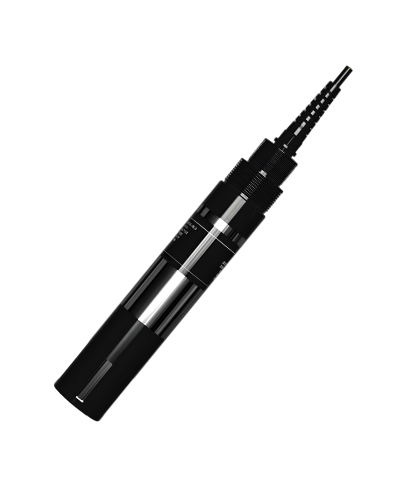

This product is an intelligent dissolved oxygen online sensor independently developed by ERUN Group. It features high stability and high precision. It can automatically detect the temperature and perform automatic temperature compensation, and can accurately measure the conductivity value and temperature value in the solution. It is widely used for online monitoring of dissolved oxygen values in water bodies such as seawater.
Measuring Range | 0.00-20.00mg/L |
Accuracy | ±0.3mg/L |
Resolution | 0.01 mg/L |
Temperature Measuring Range | 0.0-60.0℃ |
Detection Principle | Fluorescence Method |
Medium Flow Rate | ＞0.02m/s |
Temperature Compensation | Automatic/Manual |
Data Communication | RS485（MODBUS-RTU） |
Current Output Signal | 4-20mA |
Power Supply | DC12V |
Pressure Range | 0-2bar |
Housing Material | POM、Stainless Steel |
Connection Thread | G3/4 |
Signal Cable Length | 5m or Customizable |
Electrical Connection | Pin Type |
Installation Method | immersion type |
IP Rating | IP68 |
