Portable copper ion detector

ERUN-80-C6
It is widely used for the determination of drinking water, surface water, surface water, sewage and industrial wastewater
ERUN-80-C6
ERUN-80-C6
ERUN-80-C6
ERUN-80-C6
ERUN-80-C6
ERUN-80-C6
Introduction

Brand: Erun Environmental protection


Name: Portable copper ion detector


Model:ERUN-80-C6


Parameters: Copper ion Cu(measurement method: sodium diethyl dithiocarbamate spectrophotometry)


ERUN-80-C6, a portable copper ion detector developed and produced by ERUN Environmental Protection, is mainly used to monitor and detect the concentration of copper ions in water to ensure water quality safety and compliance with relevant standards. Copper ion detector is suitable for a variety of occasions, such as surface water, industrial wastewater (such as electroplating wastewater), sewage plant inlet and outlet environment of total copper online monitoring.


Parameters
  • Measuring range

  • 0.02 ~ 10.00mg/L

  • Indication error

  • Plus or minus 5% or less

  • repeatability

  • 3% or less

  • Optical stability

  • The absorption value of the instrument drifts less than 0.002A within 20min

  • Overall dimension

  • 80mm×230mm×55mm

  • weight

  • 500g

  • Normal service condition

  • ⑴ Ambient temperature :5 ~ 40℃

  • ⑵ Relative humidity: ≤85%

  • (3) Power supply: 4 No. 5 batteries

  • (4) No significant vibration and electromagnetic interference, avoid direct sunlight.



Features

  • High performance ultra-low power 16-bit MCU

  • LCD Large screen liquid crystal display, easy to operate intuitive

  • The instrument is convenient and small, easy to carry on-site detection

  • Can save 20 standard curves and 199 measurement values (including time label year, month, day, hour, minute, second measurement value, light absorption value and light transmittance)

  • Cold light source, narrow band interference optical system, good optical stability

  • Data power off protection function

  • The main engine case is made of molded ABS material, IP65 design, good anti-corrosion, waterproof and dust-proof performance

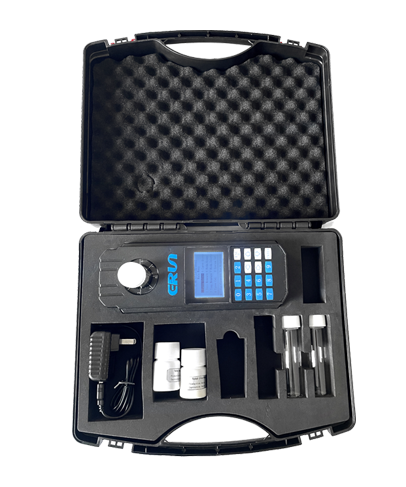

Configuration Checklist

  • 1 mainframe

  • 4 5# batteries

  • 3 colorimetric tubes

  • 1 copy of instruction manual

  • A portable case

  • Reagent 1 set

  • Product certificate

  • One copy of warranty card
