Brand: Erun

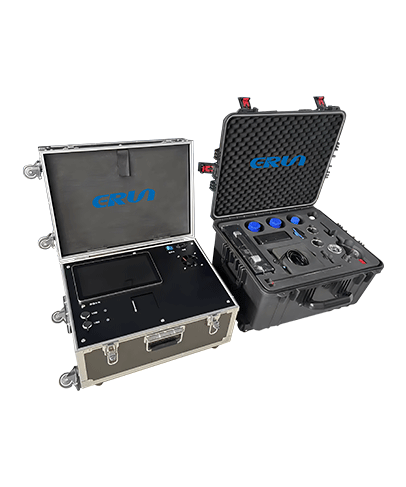

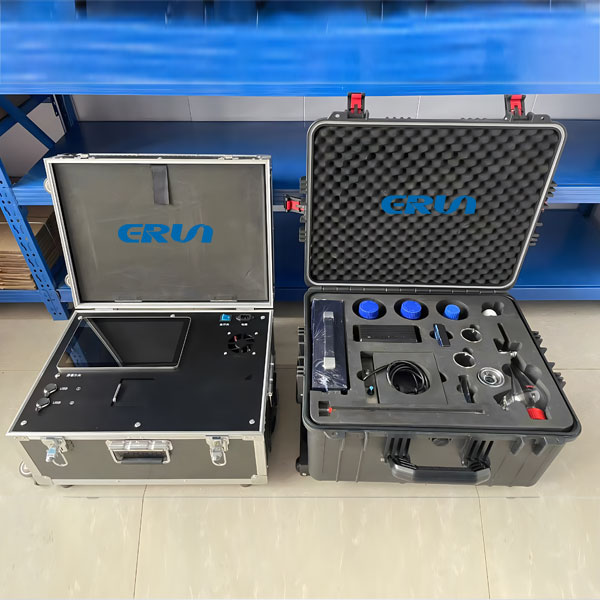

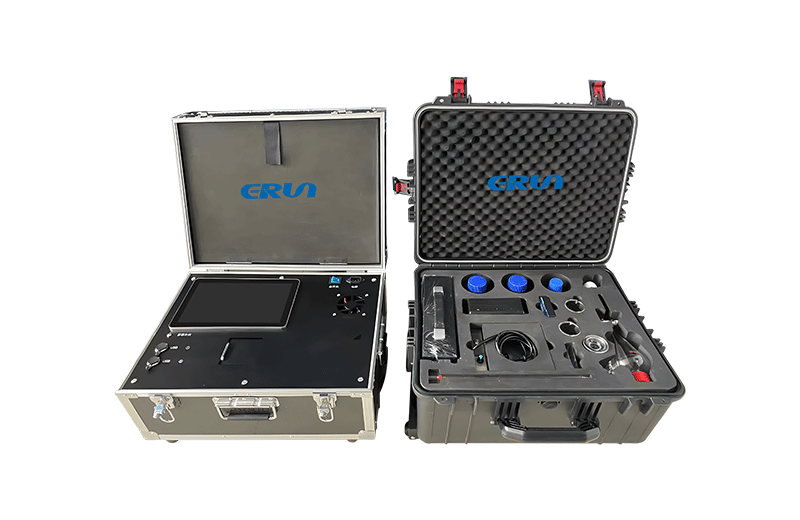

Name: Portable infrared oil meter
Model: ERUN-SP3-J4
Parameter: Oil
ERUN-SP3-J4 portable infrared oil meter portable integrated design, universal wheel waterproof case is easy to carry, designed with a one-stop sample pre-treatment portable workstations, on-site sampling, automatic extraction of water samples, fast and convenient, especially for emergency monitoring and routine field monitoring, can also be used as a laboratory routine analysis.For the detection of total, mineral, animal and vegetable oils in surface water, groundwater, domestic sewage and industrial wastewater.
1, wave number range: 3400cm-1 ~ 2400cm-1 (i.e. 2941nm ~ 4167nm);
2、Absorbance range: 0.0000～4.0000AU (i.e. transmittance 100～1%T);
3. Measuring range of water samples: 0.00-100% oil (diluted or enriched);
4, baseline stability: zero real-time automatic adjustment (to eliminate the effects of baseline drift);
5, Detection limit: DL<0.04mg/L (3 times the SD of 11 determinations of tetrachloroethylene blank solution);
6, Repeatability: RSD ≤ 0.6% (30-40mg / L oil standard samples measured 11 times);
7, Measurement accuracy error: ≤ ± 2%;
8. Basic measuring range: 0.0～900mg/L;
9, the maximum measurement concentration: 64000mg / L (water sample concentration);
10. Correlation coefficient: R>0.999;
11. Scanning speed: full-spectrum scanning, 30 seconds/time; non-dispersive infrared method 2 seconds/time;
12. Accuracy of wave number: ±1.0cm-1;
13. Wave number repeatability: ±1.0cm-1;
14, temperature and humidity: temperature range 1 ℃ -50 ℃, humidity ≤ 80 ﹪;
15, the use of power: AC (220 ± 22) V, (50 ± 1) Hz;
16, with intelligent automated processing information, database storage, printing and saving as Excel, PDF document functions.
1, can complete the measurement of liquid, solid, gas, fixed pollution sources exhaust fumes, oil mist and other substances measured oil content;
2, the instrument is an all-in-one machine: the instrument integrated integrated 11.6-inch industrial-grade multi-touch screen computer control terminal.(non-commercial tablet PC) do not have to be connected to a PC computer, using wireless control, direct control of dexterity and convenience, engineering waterproof gimbaled wheel carrying case.
3, health and safety: extraction and other operations do not require personnel participation, not in contact with reagents to ensure the health of personnel;
4, exclusive safety protection box, easy to carry, flexible operation, convenient field testing, can be upgraded to fully automatic portable infrared oil meter;
5、Integrated optical system design, good stability, high seismic performance, can work in the mobile state;
6, long working time, equipped with high-power lithium battery, continuous measurement time is more than 2 hours, and at the same time with an external cable, can be connected to the car power measurement, so that the field measurement time is longer;
7, wavelength auto-calibration: wavelength of a key self-check, automatic calibration of the reference wavelength to ensure the accuracy of the detection data;
8, can automatically qualify the quality of perchloroethylene testing, provides Es Eyw + perchloroethylene purity self-test navigation function, the software automatically prompts whether qualified;
9, a variety of ways to use: touch-screen industrial computer embedded in the host instrument, the tablet out of the host instrument, external PC, three ways to use the instrument does not affect the overall layout of the host, the system to achieve touch control compatible with wireless keyboard and mouse control;
10. Equipped with special analysis software, integrating spectrum, scanning, analysis and calculation;
11、Support serial port, Bluetooth, WiFi and other communication modes to realize local and remote instrument management and information transmission;
12、One-stop service with special accessory box;
13, real-time automatic zero, the computer not only collects the signal when the light source is emitting, but also collects the signal when the light source is extinguished, realizes the zero point real-time automatic adjustment, thus simplifying the operation and improving the long-term stability of the signal;
14, high analytical efficiency, the instrument in 30 seconds to complete the analysis of a sample determination;
15. There are many types of applicable reagents: perchloroethylene, carbon tetrachloride and so on.
